H340 Loader: Approved 2WD Tractors, Rear Ballast and Approved Front Tires

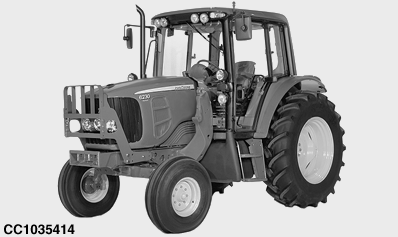

CC1035414-UN-09JAN12
CAUTION: To help prevent personal injury or death caused by
tractor rollover, be sure tractor is equipped with rollover protective
structure (ROPS) and approved seat belt. Ensure stability of tractor
and loader by adding the recommended amount of ballast to the rear
hitch of tractor.
IMPORTANT: To prevent tire failure, use only tires with load index equal or greater than those shown in following tables.
NOTE: Compatibility shown in following tables is given for Premium, non-Premium, SE and non-SE tractors.
See your tractor Operator's Manual to find allowed tire sizes.
Set tire pressure to the maximum work pressure for a maximum speed of 10 km/h (6.2 mph).
See your tractor Operator's Manual, tire manufacturer's documentation or your John Deere dealer to know tire specifications.
|
Tractor |
H340 Loader NSL |
H340 Loader MSL |
H340 Loader HSL |
||||
|---|---|---|---|---|---|---|---|
|
Series |
Models |
Hitch Ballast |
Minimum Load Capacity per Tire at 10 km/h (6.2 mph) |
Hitch Ballast |
Minimum Load Capacity per Tire at 10 km/h (6.2 mph) |
Hitch Ballast |
Minimum Load Capacity per Tire at 10 km/h (6.2 mph) |
|
6R |
6115R |
1800 kg (4000 lb.) |
2680 kg (5910 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
6125R |
1800 kg (4000 lb.) |
2680 kg (5910 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
|
6M with cab |
6105M |
1150 kg (2550 lb.)1 |
2770 kg (6110 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
6115M |
1800 kg (4000 lb.) |
2720 kg (6000 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
|
6125M |
1800 kg (4000 lb.) |
2720 kg (6000 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
|
6130M |
1800 kg (4000 lb.) |
2670 kg (5890 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
|
6140M |
1800 kg (4000 lb.) |
2670 kg (5890 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
|
6150M |
1800 kg (4000 lb.) |
2730 kg (6020 lb.) |
1800 kg (4000 lb.) |
3040 kg (6700 lb.) |
1800 kg (4000 lb.) |
3040 kg (6700 lb.) |
|
|
6M without cab |
6105M |
1150 kg (2550 lb.)1 |
2770 kg (6110 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
6115M |
1800 kg (4000 lb.) |
2720 kg (6000 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
|
6125M |
1800 kg (4000 lb.) |
2720 kg (6000 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
|
6130M |
1800 kg (4000 lb.) |
2670 kg (5890 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
|
6140M |
1800 kg (4000 lb.) |
2670 kg (5890 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
|
6150M |
1800 kg (4000 lb.) |
2730 kg (6020 lb.) |
1800 kg (4000 lb.) |
3040 kg (6700 lb.) |
1800 kg (4000 lb.) |
3040 kg (6700 lb.) |
|
|
6030 |
6130 |
1800 kg (4000 lb.) |
2670 kg (5890 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
6230 |
1800 kg (4000 lb.) |
2670 kg (5890 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
|
6330 |
1800 kg (4000 lb.) |
2720 kg (6000 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
|
6430 |
1800 kg (4000 lb.) |
2720 kg (6000 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
|
6530 |
1800 kg (4000 lb.) |
2740 kg (6045 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
|
6534 |
1800 kg (4000 lb.) |
2740 kg (6045 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
|
6025 |
6225 |
1150 kg (2550 lb.)1 |
2600 kg (5735 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
6325 |
1150 kg (2550 lb.)1 |
2600 kg (5735 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
|
6425 |
1150 kg (2550 lb.)1 |
2600 kg (5735 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
|
6525 |
1150 kg (2550 lb.)1 |
2570 kg (5670 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
|
6020 |
6020 |
1800 kg (4000 lb.) |
2670 kg (5890 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
6120 |
1800 kg (4000 lb.) |
2670 kg (5890 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
|
6220 |
1800 kg (4000 lb.) |
2670 kg (5890 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
|
6320 |
1800 kg (4000 lb.) |
2720 kg (6000 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
|
6420 |
1800 kg (4000 lb.) |
2720 kg (6000 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
|
6520 |
1800 kg (4000 lb.) |
2740 kg (6045 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
|
6015 |
6215 |
1150 kg (2550 lb.)1 |
2600 kg (5735 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
6515 |
1150 kg (2550 lb.)1 |
2570 kg (5670 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
|
6010 |
6010 |
1800 kg (4000 lb.) |
2670 kg (5890 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
6110 |
1800 kg (4000 lb.) |
2670 kg (5890 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
|
6210 |
1800 kg (4000 lb.) |
2670 kg (5890 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
|
6310 |
1800 kg (4000 lb.) |
2720 kg (6000 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
|
6410 |
1800 kg (4000 lb.) |
2720 kg (6000 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
|
6510 |
1800 kg (4000 lb.) |
2740 kg (6045 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
|
6005 |
6205 |
1150 kg (2550 lb.)1 |
2600 kg (5735 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
6505 |
1150 kg (2550 lb.)1 |
2570 kg (5670 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
|
6000 |
6100 |
1800 kg (4000 lb.) |
2670 kg (5890 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
6200 |
1800 kg (4000 lb.) |
2670 kg (5890 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
|
6300 |
1800 kg (4000 lb.) |
2720 kg (6000 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
|
6400 |
1800 kg (4000 lb.) |
2720 kg (6000 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
|
6500 |
1800 kg (4000 lb.) |
2740 kg (6045 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
|
6506 |
1800 kg (4000 lb.) |
2740 kg (6045 lb.) |
NOT OK |
NOT OK |
NOT OK |
NOT OK |
|
|
1 Rear ballast
box required.
|
OUCC006,0001A06-19-20121218 |
