Every 10 Hours - H240, H260, H310, H340, H360 and H380 MSL Loaders

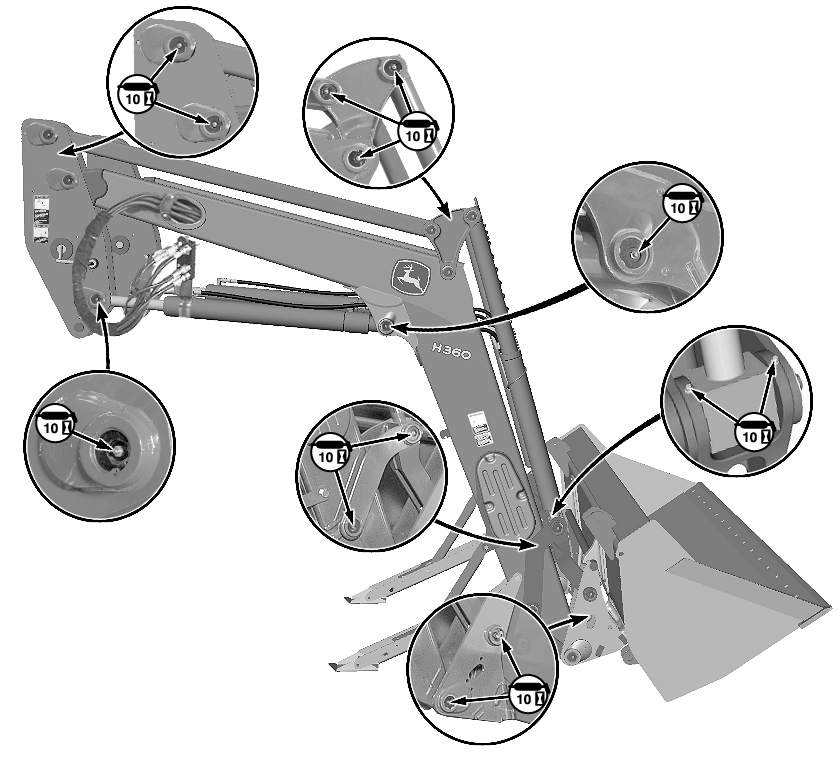

W21706-UN-23AUG11

H360 MSL Loader Shown

CAUTION: Help prevent personal injury caused by unexpected movement of the loader. Lower loader to the ground, engage park brake or place transmission in ”PARK”, shut off engine and remove key before lubricating or servicing the loader.

Level implement and lower it to ground.

Lubricate 26 fittings, 13 on each side of loader.
