Every 10 Hours - H240, H260, H310, H340 and H360 NSL Loaders

W21707-UN-23AUG11

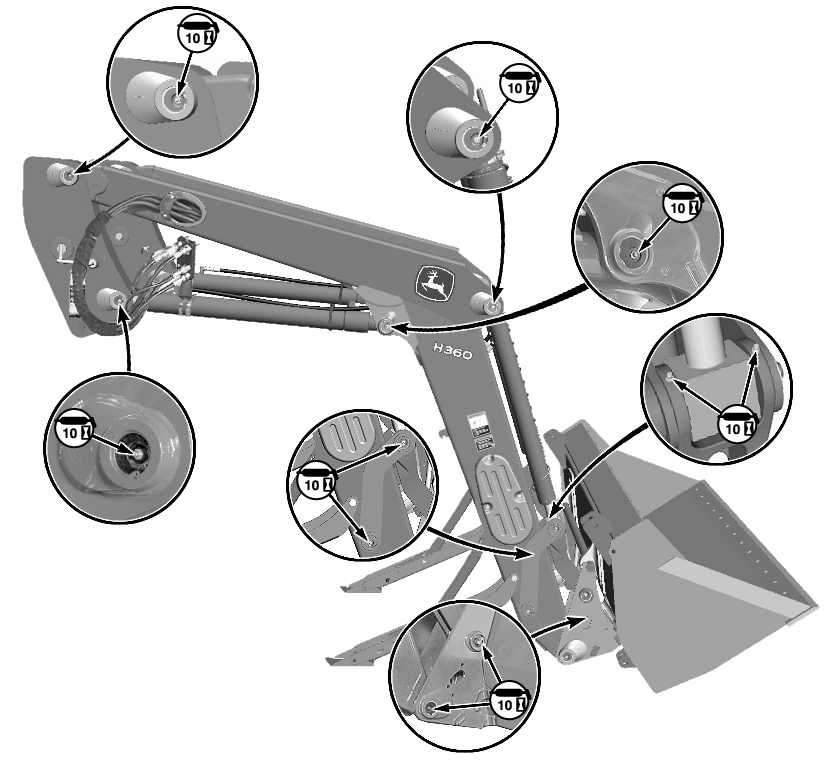

H360 NSL Loader Shown

CAUTION: Help prevent personal injury caused by unexpected movement of the loader. Lower loader to the ground, engage park brake or place transmission in ”PARK”, shut off engine and remove key before lubricating or servicing the loader.

Level implement and lower it to ground.

Lubricate 20 fittings, 10 on each side of loader.
