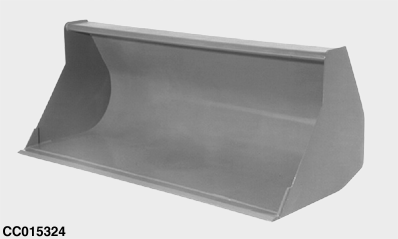

Standard Bucket
CC015324-UN-16APR99
The chart below gives the compatibility between buckets and loaders.
Only the combinations marked OK are allowed.
|
Bucket Width |
1600 mm (5 ft. 3 in.) |
1800 mm (5 ft. 11 in.) |
1850 mm (6 ft. 1 in.) |
2000 mm (6 ft. 7 in.) |
2200 mm (7 ft. 3 in.) |
2400 mm (7 ft. 10 in.) |
2450 mm (8 ft.) |
|
|---|---|---|---|---|---|---|---|---|
|
Struck Capacity |
0.58 m3 (20 cu. ft.) |
0.66m3 (23 cu. ft.) |
0.67 m3 (24 cu. ft.) |
0.72 m3 (25 cu. ft.) |
0.79 m3 (28 cu. ft.) |
0.86 m3 (30 cu. ft.) |
0.88 m3 (31 cu. ft.) |
|
|
Loader Model |
Compatibility |
|||||||
|
H240 |
MSL |
OK |
OK |
OK |
OK |
|||
|
H240 |
NSL |
OK |
||||||
|
H260 |
MSL |
OK |
OK |
OK |
OK |
OK |
||
|
H260 |
NSL |
OK |
||||||
|
H310 |
HSL |
OK |
OK |
OK |
OK |
OK |
OK |
OK |
|
H310 |
MSL |
OK |
OK |
OK |
OK |
OK |
OK |
OK |
|
H310 |
NSL |
OK |
OK |
OK |
OK |
|||
|
H340 |
HSL |
OK |
OK |
OK |
OK |
OK |
OK |
OK |
|
H340 |
MSL |
OK |
OK |
OK |
OK |
OK |
OK |
OK |
|
H340 |
NSL |
OK |
OK |
OK |
OK |
OK |
||
|
H360 |
HSL |
OK |
OK |
OK |
OK |
OK |
OK |
OK |
|
H360 |
MSL |
OK |
OK |
OK |
OK |
OK |
OK |
OK |
|
H360 |
NSL |
OK |
OK |
OK |
OK |
OK |
OK |
OK |
|
H380 |
MSL |
OK |
OK |
OK |
OK |
OK |
OK |
OK |
OK: Bucket allowed on this loader
|
