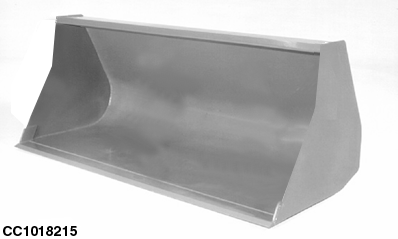

High-Volume Bucket

CC1018215-UN-03AUG00

The chart below gives the compatibility between buckets and loaders.

Only the combinations marked OK are allowed.

Bucket Width		2300 mm (7 ft. 7 in.)
Struck Capacity		1.3 m3 (46 cu. ft.)
Loader Model		Compatibility
H240	MSL
H240	NSL
H260	MSL
H260	NSL
H310	HSL
H310	MSL
H310	NSL
H340	HSL	OK
H340	MSL	OK
H340	NSL
H360	HSL	OK
H360	MSL	OK
H360	NSL	OK
H380	MSL	OK

OK: Bucket allowed on this loader
