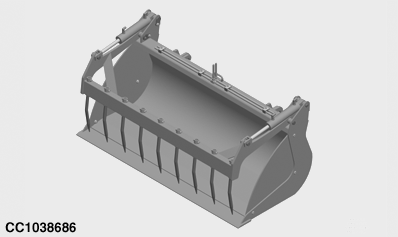

Standard Multi-Purpose Bucket

CC1038686-UN-07DEC12

The following standard multi-purpose buckets with grapple are available:

The chart below gives the compatibility between buckets and loaders.

Only the combinations marked OK are allowed.

Bucket Width		1600 mm (5 ft. 3 in.)	1800 mm (5 ft. 11 in.)	2000 mm (6 ft. 7 in.)	2200 mm (7 ft. 3 in.)
Struck Capacity		0.48 m3 (17 cu. ft.)	0.54 m3 (19 cu. ft.)	0.6 m3 (21 cu. ft.)	0.66 m3 (23 cu. ft.)
Loader Model		Compatibility
H240	MSL	OK	OK
H240	NSL
H260	MSL	OK	OK	OK
H260	NSL	OK	OK
H310	HSL	OK	OK	OK
H310	MSL	OK	OK	OK
H310	NSL	OK	OK
H340	HSL	OK	OK	OK	OK
H340	MSL	OK	OK	OK	OK
H340	NSL	OK	OK	OK
H360	HSL	OK	OK	OK	OK
H360	MSL	OK	OK	OK	OK
H360	NSL	OK	OK	OK	OK
H380	MSL	OK	OK	OK	OK

OK: Bucket allowed on this loader
