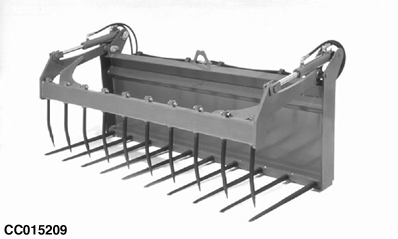

Standard Manure Fork with Grapple

CC015209-UN-16APR99

Standard manure forks with grapples are available in the following widths:

The chart below gives the compatibility between forks and loaders.

Only the combinations marked OK are allowed.

Fork Width		1400 mm (4 ft. 7 in.)	1600 mm (5 ft. 3 in.)	2000 mm (6 ft. 7 in.)
Loader Model		Compatibility
H240	MSL	OK	OK
H240	NSL	OK
H260	MSL	OK	OK	OK
H260	NSL	OK	OK
H310	HSL	OK	OK	OK
H310	MSL	OK	OK	OK
H310	NSL	OK	OK	OK
H340	HSL	OK	OK	OK
H340	MSL	OK	OK	OK
H340	NSL	OK	OK	OK
H360	HSL	OK	OK	OK
H360	MSL	OK	OK	OK
H360	NSL	OK	OK	OK
H380	MSL	OK	OK	OK

OK: Fork allowed on this loader

NOTE: This implement requires the loader to be equipped with a third hydraulic function.
