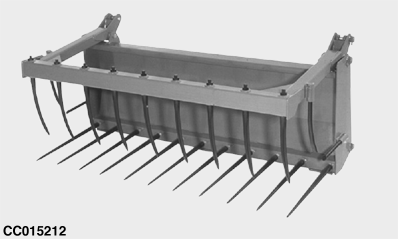

Heavy-Duty Manure Fork with Grapple

CC015212-UN-16APR99

Grapples are available to fit heavy-duty manure forks.

The chart below gives the compatibility between heavy-duty manure fork with grapple and loaders.

Only the combinations marked OK are allowed.

Fork Width		1550 mm (5 ft. 1 in.)	1900 mm (6 ft. 3 in.)
Loader Model		Compatibility
H240	MSL
H240	NSL
H260	MSL	OK
H260	NSL
H310	HSL	OK	OK
H310	MSL	OK	OK
H310	NSL	OK	OK
H340	HSL	OK	OK
H340	MSL	OK	OK
H340	NSL	OK	OK
H360	HSL	OK	OK
H360	MSL	OK	OK
H360	NSL	OK	OK
H380	MSL		OK

OK: Fork allowed on this loader

NOTE: Grapples require the loader to be equipped with a third hydraulic function.
