Heavy-Duty Multiple Bale Grapple

CC1038690-UN-11DEC12

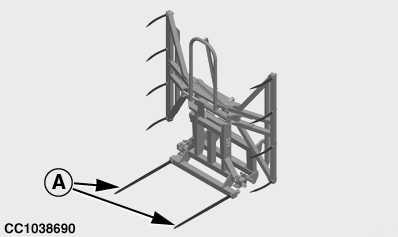

A - Bale Grapple Inferior Teeth

Heavy-duty multiple bale grapple is designed to grab bales in any position and stack them.

IMPORTANT: DO NOT handle bales that exceed 1800 kg (3970 lb.) without bale grapple inferior teeth (A) and 2200 kg (4850 lb.) with bale grapple inferior teeth (A).

NOTE: This implement requires the loader to be equipped with a third hydraulic function.

The chart below gives the load capacity for each loader combination.

Loader Model		Load capacity without bale grapple inferior teeth (A)	Load capacity with bale grapple inferior teeth (A)
H240	MSL	1050 kg (2315 lb.)	1050 kg (2315 lb.)
H240	NSL	NOT OK	NOT OK
H260	MSL	1250 kg (2755 lb.)	1250 kg (2755 lb.)
H260	NSL	NOT OK	NOT OK
H310	HSL	1450 kg (3200 lb.)	1450 kg (3200 lb.)
H310	MSL	1450 kg (3200 lb.)	1450 kg (3200 lb.)
H310	NSL	1100 kg (2425 lb.)	1100 kg (2425 lb.)
H340	HSL	1550 kg (3420 lb.)	1550 kg (3420 lb.)
H340	MSL	1550 kg (3420 lb.)	1550 kg (3420 lb.)
H340	NSL	1250 kg (2755 lb.)	1250 kg (2755 lb.)
H360	HSL	1650 kg (3635 lb.)	1650 kg (3635 lb.)
H360	MSL	1650 kg (3635 lb.)	1650 kg (3635 lb.)
H360	NSL	1400 kg (3085 lb.)	1400 kg (3085 lb.)
H380	MSL	1800 kg (3970 lb.)	1900 kg (4190 lb.)
NOT OK: Attachment not allowed on this loader

Load capacity is given for round bales of 1.20 m (4 ft.) diameter, handled by their curved surface.

NOTE: Roll back function may not be working in some conditions.
