H260 MSL Loader Specifications on 5115M iT4 Tractor¹

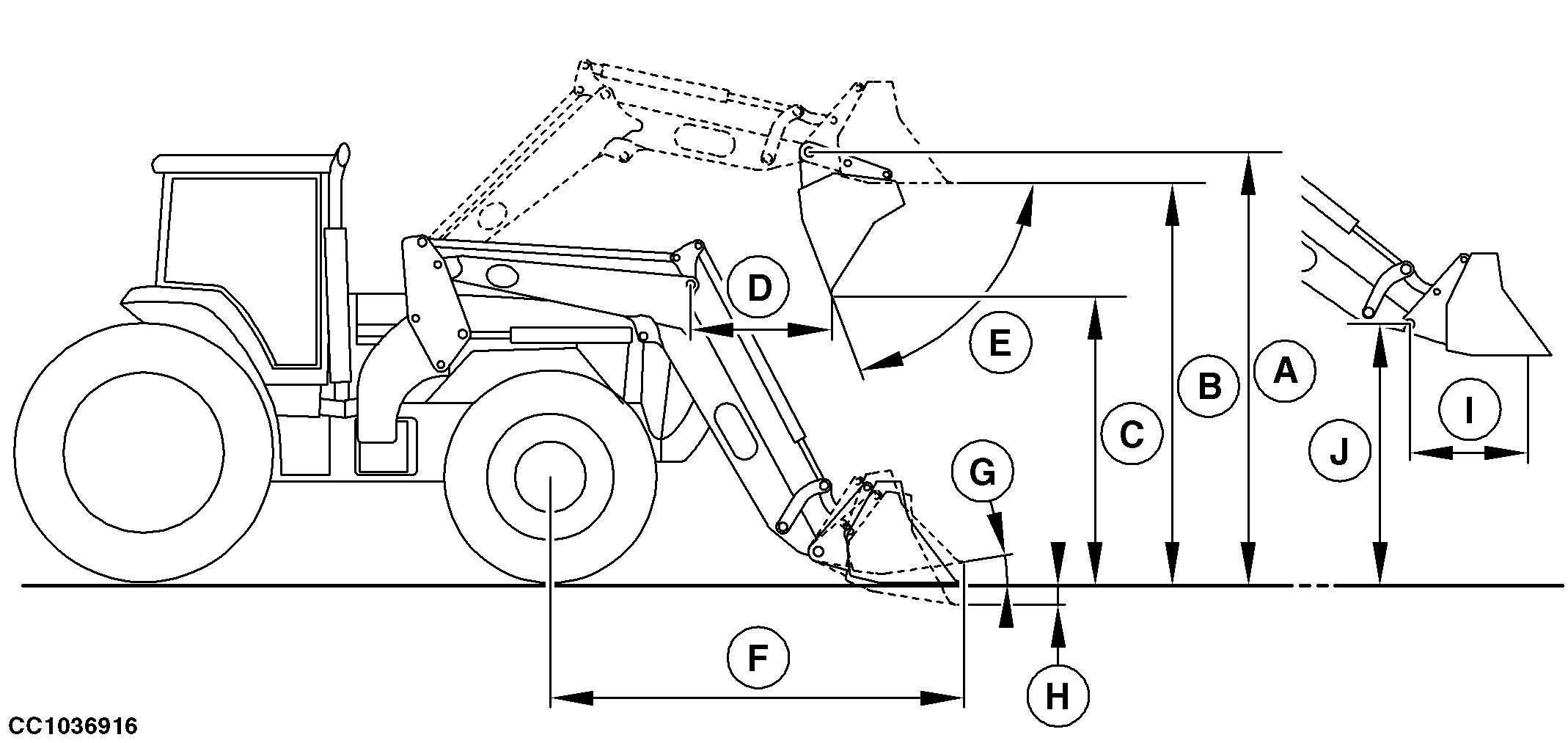

CC1036916-UN-03FEB12

Tractor Model 5115M iT4
Minimum Rear Ballast	3-Point Hitch 900 kg (2000 lb.)
Wheelbase	2300 mm (7 ft. 7 in.)
Front Tires	13.6R24
Rear Tires	16.9R34
Maximum Loader Weight Including Mounting Frame
Mass	785 kg (1730 lb.)
Heavy-Duty Material Bucket
Width	1850 mm (6 ft. 1 in.)
Length	—
Mass	228 kg (503 lb.)
Hydraulic System
Rated Flow	70 L/min. (18 gpm)
Maximum Pressure	20100 kPa (200 bar) (2900 psi)
Cycle Times (in seconds)
Loader Raise Time	3.72
Loader Lower Time	2.79
Bucket Dump Time	2.22
Bucket Roll-Back Time	2.22
Lift Height (Maximum)
To Pivot Pin (A)	3540 mm (11 ft. 7 in.)

Clearance
Bucket Level (B)	3346 mm (11 ft.)
Bucket Dumped (C)	2555 mm (8 ft. 5 in.)
Digging Depth (H)	31 mm (1.2 in.)
Reach
At Maximum Lift Height with Bucket Dumped (D)	846 mm (2 ft. 9 in.)
Bucket on Ground with Bucket Leveled (F)	2335 mm (7 ft. 8 in.)
Angles (Maximum)
Dump (E)	60°
Dump at Ground	61°
Roll back (G)	44°
Lift Capacity
To Maximum Height (A) at Pivot Point	1412 kg (3113 lb.)
To Maximum Height (A) at 800 mm (2 ft. 7 in.) (I) Ahead of Pivot Point	1583 kg (3490 lb.)
To 1500 mm (4 ft. 11 in.) (J) at Pivot Point	2081 kg (4588 lb.)
Breakout Force
At Pivot Point	2733 kgf (6025 lbf)
800 mm (2 ft. 7 in.) (I) Ahead of Pivot Point	2303 kgf (5077 lbf)
