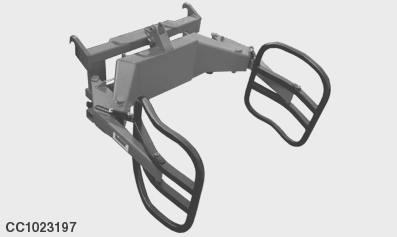

Articulated Bale Gripper

CC1023197-UN-24JUN03

Use the articulated bale gripper to handle round bales with plastic wrapping.

IMPORTANT: DO NOT handle bales that exceed bale weight of 800 kg (1764 lb.).

The articulated bale gripper is not compatible with H240 NSL and H260 NSL loaders.

NOTE: This implement requires the loader to be equipped with a third hydraulic function.

Bales can be handled from almost any direction and can be stacked on their ends or sides.
