Every 50 Hours - Check Mounting Frame Hardware (6D Series Tier 3 Tractors)
CC202367-UN-09JUL13
CC202368-UN-09JUL13

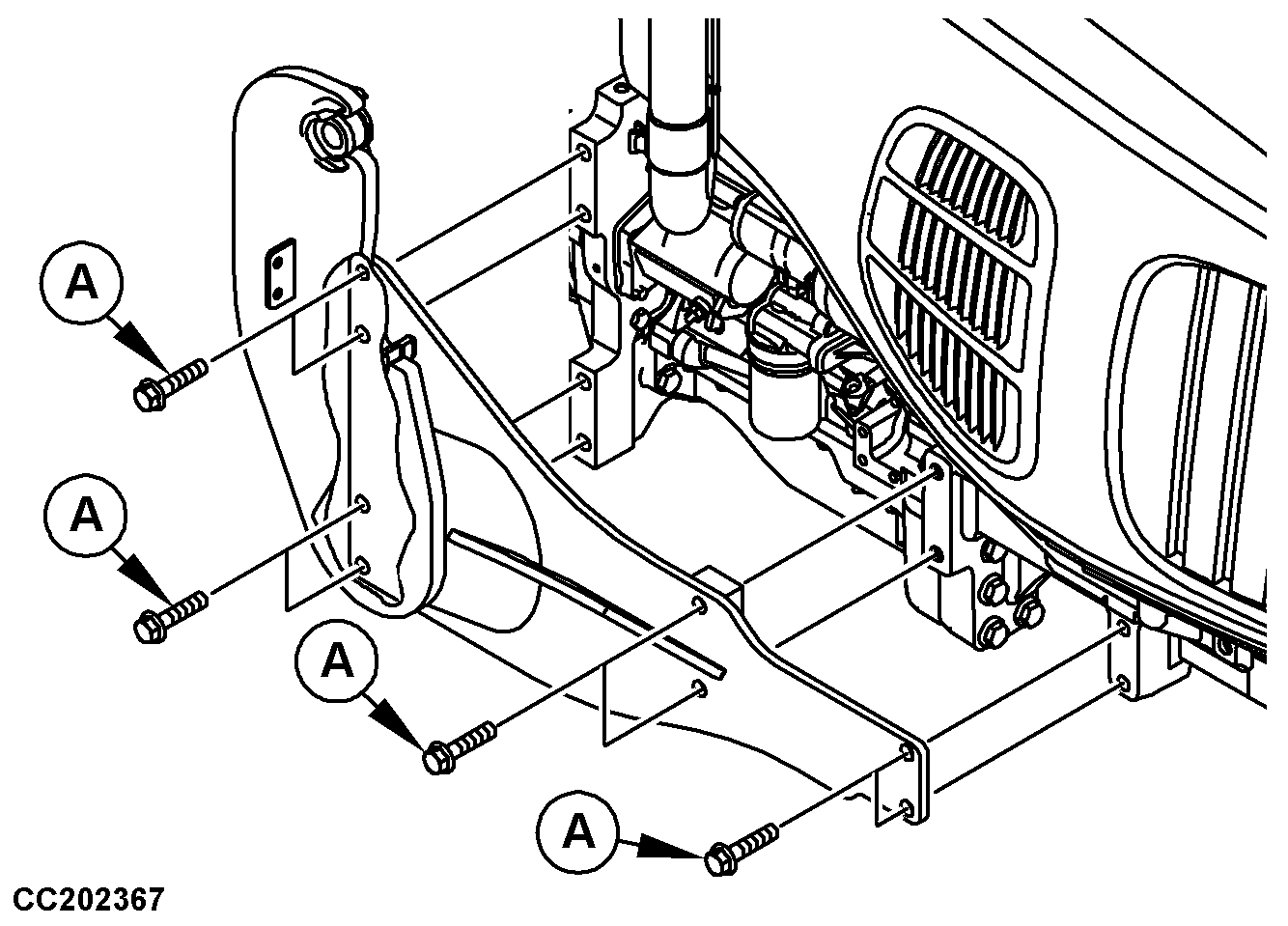

A - Cap Screw with Flange
IMPORTANT: Help prevent damage to the tractor or loader caused by operating with loose mounting hardware. Tightening loader mounting frame hardware after first 3 hours of loader operation is critical. Tighten again after 10 hours and every 50 hours thereafter.

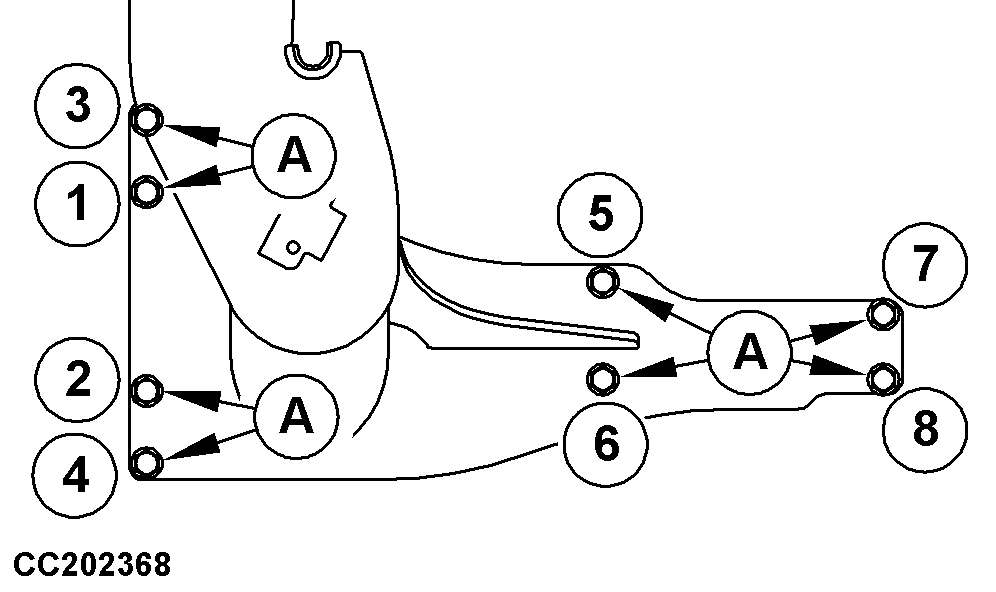

Tighten height cap screws (A) on both sides to specification using tightening sequence shown.
| Item | Measurement | Specification |
| Cap Screw with Flange (A) | Torque | 530 N·m (390 lb.-ft.) |
|
Hardware used on loader mounting frame |
|||||
|---|---|---|---|---|---|
|
Item |
Designation |
Standard |
Dimension |
Identification / Grade |
Coating |
|
(A) |
Cap screw with flange |
JDS121 |
M20 x 2.5 x 90 |
10.9 |
Zinc |
|
OUCC006,0001A9D-19-20130718 |
