Operate Lift Cylinder Mechanical Locks (Australia Only)

CC006755
CC006755-UN-28MAR95

CC1037705
CC1037705-UN-17JUL12

A - Lift Cylinder Mechanical Locks

B - Screws and Crank Arms


Install Lift Cylinder Mechanical Locks:

  1. Remove any load from bucket or attachment.

    IMPORTANT: Avoid machine damage. Do not lower loader onto lift cylinder mechanical locks with hydraulic pressure applied or with load in bucket.

  2. Remove lift cylinder mechanical locks (A) from their storage position.

  3. Engage park brake.

  4. Place transmission in PARK.

  5. Raise loader and dump bucket or attachment.

  6. Shut off tractor engine and remove key.

    CAUTION: Avoid injury or death. Do not stand under a raised loader. Stand to side of tractor and loader when working with lift cylinder mechanical locks.

  7. Position lift cylinder mechanical locks (A) on both boom cylinders as shown.

    IMPORTANT: Lift cylinder mechanical lock (A) must be positioned on the top of the cylinder rod.

  8. Retain lift cylinder mechanical locks (A) with screws and crank arms (B).

    IMPORTANT: Install screws and crank arms (B) in the hole that allows for the smallest distance between screw and cylinder rod.

  9. Slowly relieve pressure from the hydraulic system.

CC203803
CC203803-UN-18JUL13

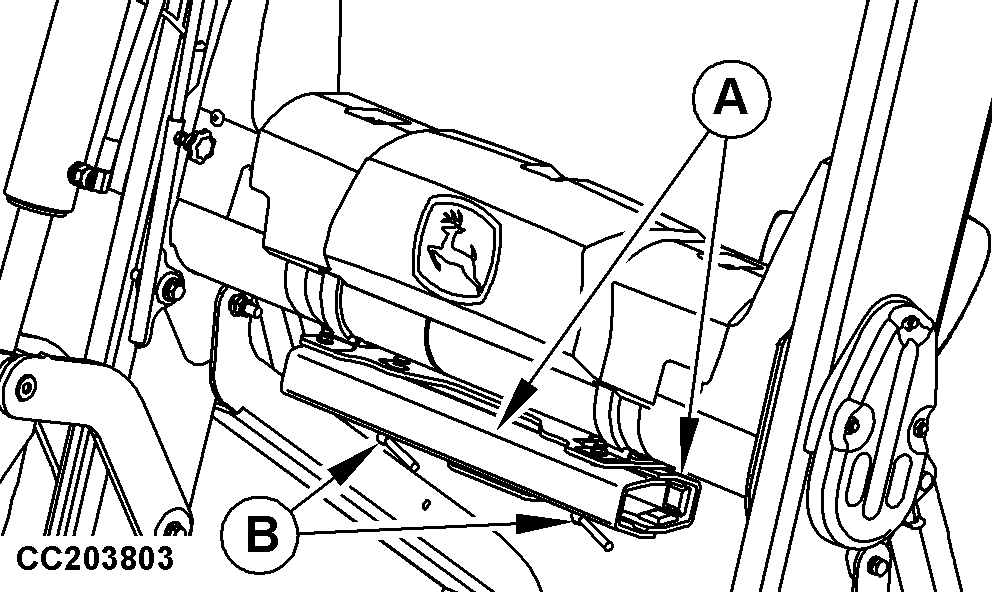

H240 and H260 Loaders

CC1037706
CC1037706-UN-17JUL12

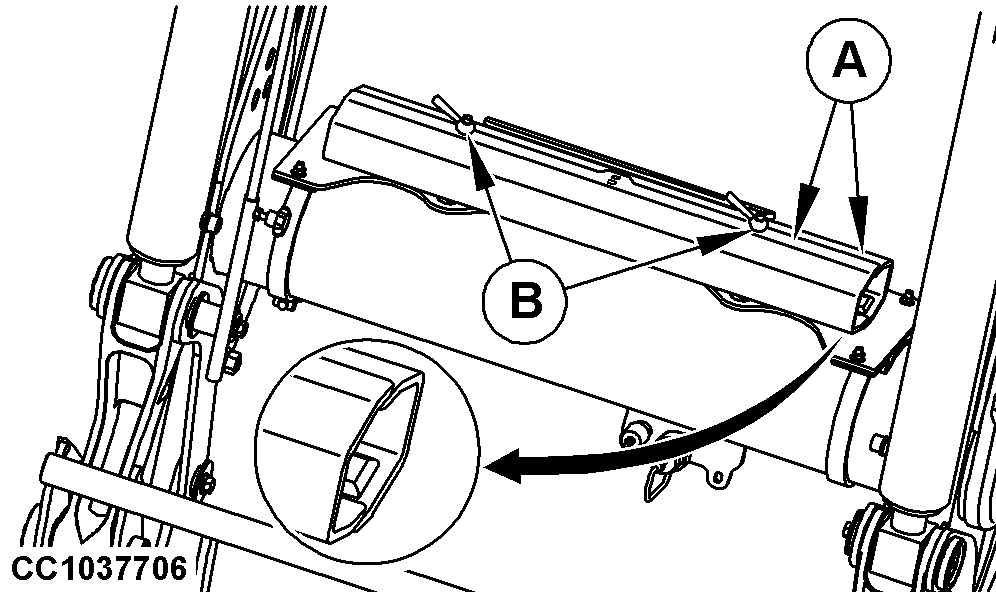

H310, H340, H360 and H380 Loaders

A - Lift Cylinder Mechanical Locks

B - Screws and Crank Arms

Remove and Store Lift Cylinder Mechanical Locks:

CAUTION: Avoid injury or death. Do not stand under a raised loader. Stand to side of tractor and loader when working with lift cylinder mechanical locks.

  1. Raise loader.

  2. Shut off tractor engine and remove key.

  3. Remove screws and crank arms (B), then remove lift cylinder mechanical locks (A) from cylinders.

  4. Lower loader to the ground.

  5. Install both lift cylinder mechanical locks (A) on their storage bracket, then install screws and crank arms (B) as shown.

OUCC006,0001AA6-19-20130710
