Roll Back Kit

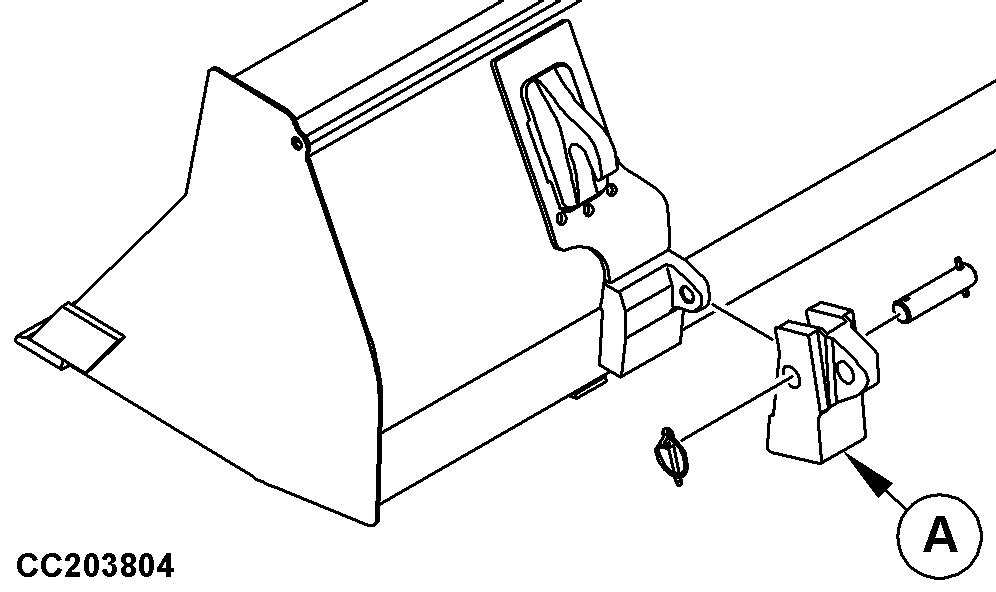

CC203804-UN-15JUL13

A - Spacer

To increase attachment roll back angle on ISO carrier, spacers (A) are available.

The chart below gives the compatibility between spacers (A) and attachments.

Attachments	Compatibility
Standard Bucket	OK
Earth Bucket	OK
Heavy-Duty Bucket	OK
High-Volume Bucket	OK
Grain Bucket	OK
Standard Multi-Purpose Bucket	NOT OK
Heavy-Duty Multi-Purpose Bucket without Grapple	OK
Heavy-Duty Multi-Purpose Bucket with Grapple	NOT OK
Standard Manure Fork	NOT OK
Standard Manure Fork with Grapple	NOT OK
Heavy-Duty Manure Fork	NOT OK
Heavy-Duty Manure Fork with Grapple	NOT OK
Pallet Fork	NOT OK
Bale Spike	OK
Combi Frame Pallet Fork	NOT OK
Combi Frame Bale Spike	OK
Bale Spike with Foldable Teeth	OK
High Capacity Bale Grapple	OK
Heavy-Duty Multiple Bale Grapple	NOT OK
Articulated Bale Gripper	OK
Round Bale Elevator	NOT OK
OK: Attachment allowed with spacers (A) NOT OK: Attachment not allowed with spacers (A)
