Adjust Front Tread (5020, 5E, 5G, 5M, 5R, 6000, 6010, 6020, 6D, 6MC and 6RC Series Tractors)

CC1028079-UN-16MAY06

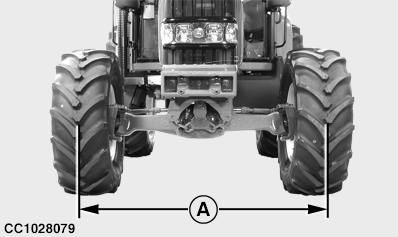

A - Tractor Front Tread

Adjust distance from tire center to tire center (A) between a minimum of 1700 mm (5 ft. 7 in.) and a maximum of 1800 mm (5 ft. 11 in.).

Adjust tractor steering stop and fender positions so that no interference occurs when the front axle oscillates.

See your tractor Operator's Manual to make adjustments.

NOTE: To maximize loader digging depth, full turn radius and full oscillation, stationary fenders are required. Order from your John Deere dealer.
