Loader Hanging Points (H240 and H260 Loaders)

W21816-UN-12SEP11

Hanging Point Sign

CC203802-UN-16JUL13

H240 and H260 Loaders

CAUTION: Avoid injury or death. Use lifting equipment with proper capacity. Refer to the following table to obtain maximum weight for each loader model.

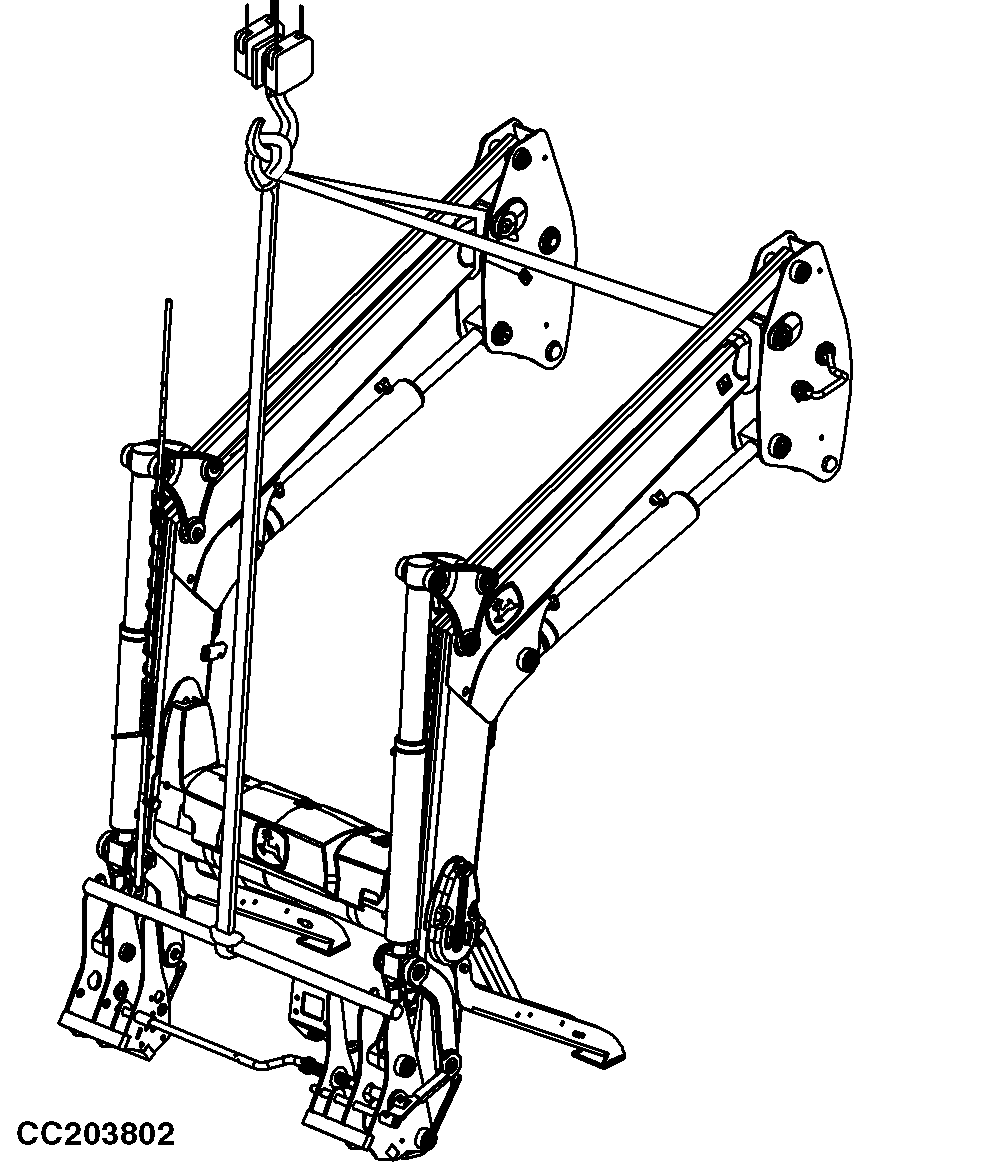

If loader must be moved when not attached to tractor, use hanging points shown. Signs indicate the hanging points. Hanging points are given for loader without bucket or attachment.

Loader Model		Maximum Weight
H240	NSL	550 kg (1215 Ib.)
	MSL	600 kg (1325 Ib.)
H260	NSL	600 kg (1325 Ib.)
	MSL	650 kg (1435 Ib.)
