Loader Hanging Points (H310, H340, H360 and H380 Loaders)

W21816-UN-12SEP11

Hanging Point Sign

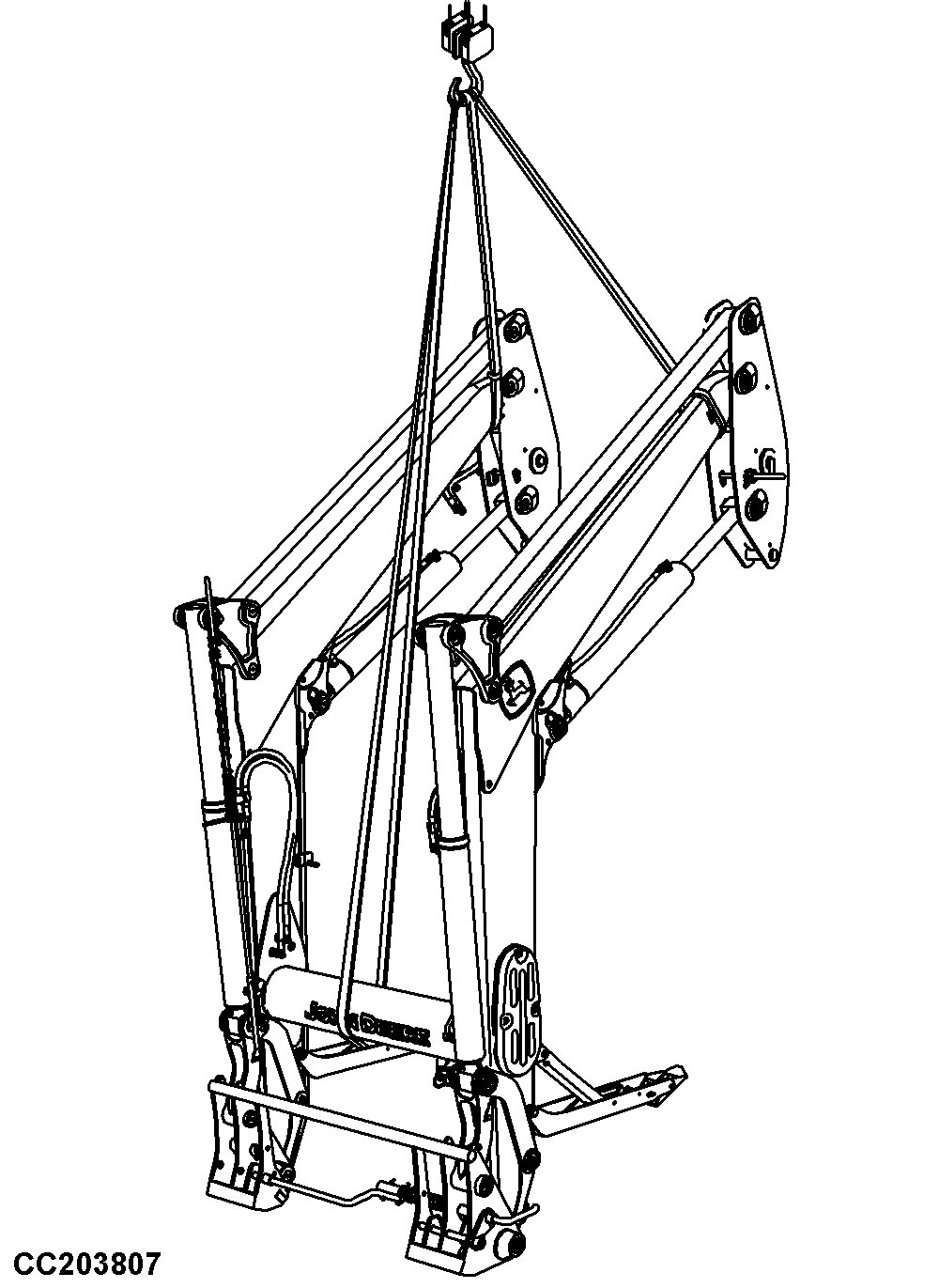

CC203807-UN-16JUL13

H310, H340, H360 and H380 Loaders

CAUTION: Avoid injury or death. Use lifting equipment with proper capacity. Refer to the following table to obtain maximum weight for each loader model.

If loader must be moved when not attached to tractor, use hanging points shown. Signs indicate the hanging points. Hanging points are given for loader without bucket or attachment.

IMPORTANT: For Australia only, remove lift cylinder mechanical locks and their bracket before moving the loader.

Loader Model		Maximum Weight
H310	NSL	650 kg (1435 Ib.)
	MSL	700 kg (1545 Ib.)
	HSL	750 kg (1655 Ib.)
H340	NSL	700 kg (1545 Ib.)
	MSL	750 kg (1655 Ib.)
	HSL	800 kg (1765 Ib.)
H360	NSL	850 kg (1875 Ib.)
	MSL	1000 kg (2205 Ib.)
	HSL	1000 kg (2205 Ib.)
H380	MSL	1050 kg (2315 Ib.)
