Handle Bale with Heavy-Duty Multiple Bale Grapple

CC203810-UN-19JUL13

A - Inferior Tooth

While operating heavy-duty multiple bale grapple to handle round and square bales, observe the following precautions:

• Handle bale by its curved or flat surface. Do not handle square bale by the end.
• If bale dimension is smaller than inferior teeth (A) length, remove inferior teeth (A). See in this section.
• When driving on public roads, remove inferior teeth (A). See in this section.
• Always handle bale centered to ensure good distribution of weight.

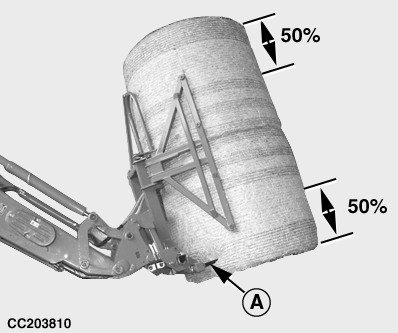

• In case of handling multiple bales, ensure that the grapple grabs upper and inferior bale for at least 50% of their height as shown.
