Ballast Tractor with Loader

CC015444
CC015444-UN-16APR99

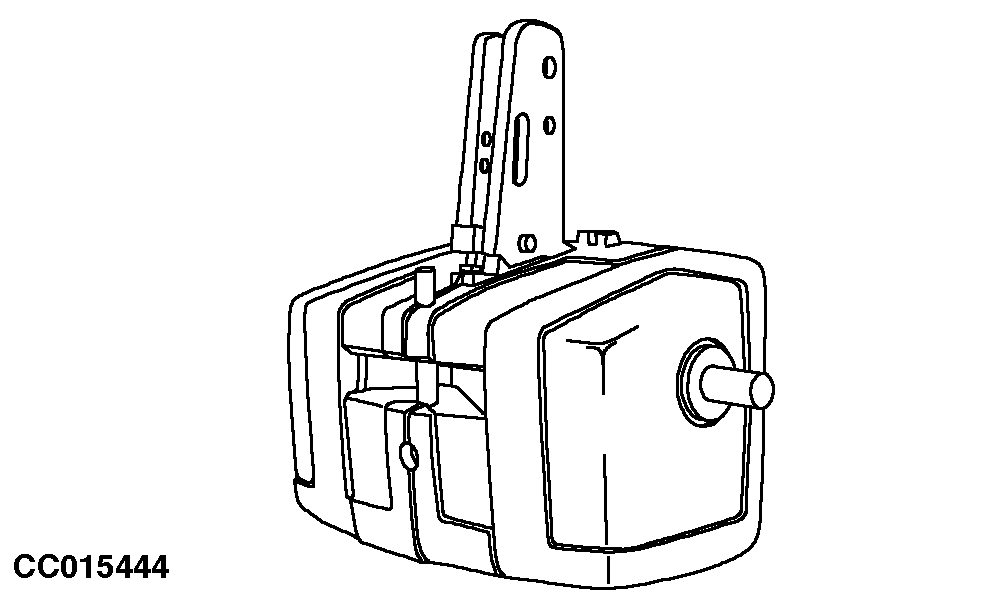

Pick-Up Ballast

CC205441
CC205441-UN-12SEP13

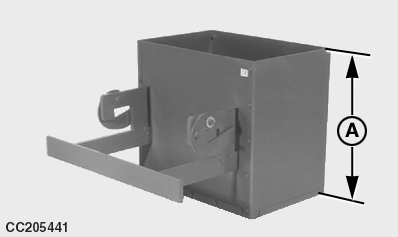

Rear Ballast Box

A - Material Filling Height

Use a pick-up ballast of 900 kg (2000 lb.), 1150 kg (2550 lb.), 1500 kg (3300 lb.), 1800 kg (4000 lb.) or an adjustable rear ballast box as required to ballast tractors with loaders.

Refer to Application Charts section to properly ballast tractor in regard to loader.

Fill the rear ballast box as required to obtain the target ballast for tractor and loader combination. Always use the rear ballast box if required ballast does not match with pickup-up ballast weight. Following table gives rear ballast box weight depending on filling height and material type. After filling the rear ballast box, drill a hole to avoid water accumulation (over ballast).

Rear Ballast Box Weight

Material Filling Height (A)

Sand

Gravel

Cement

250 kg

(550 lb.)

115 mm

(4.5 in.)

130 mm

(5.1 in.)

65 mm

(2.6 in.)

300 kg

(660 lb.)

175 mm

(6.9 in.)

200 mm

(7.9 in.)

105 mm

(4.1 in.)

350 kg

(800 lb.)

235 mm

(9.3 in.)

275 mm

(10.8 in.)

140 mm

(5.5 in.)

400 kg

(900 lb.)

300 mm

(11.8 in.)

345 mm

(1 ft. 1.6 in.)

175 mm

(6.9 in.)

450 kg

(1000 lb.)

360 mm

(1 ft. 2.2 in.)

415 mm

(1 ft. 4.3 in.)

210 mm

(8.3 in.)

500 kg

(1100 lb.)

420 mm

(1 ft. 4.5 in.)

490 mm

(1 ft. 7.3 in.)

250 mm

(9.8 in.)

550 kg

(1210 lb.)

485 mm

(1 ft. 7.1 in.)

560 mm

(1 ft. 10 in.)

285 mm

(11.2 in.)

600 kg

(1350 lb.)

545 mm

(1 ft. 9.5 in.)

630 mm

(2 ft. 0.8 in.)

320 mm

(1 ft. 0.6 in.)

650 kg

(1450 lb.)

610 mm

(2 ft.)

700 mm

(2 ft. 3.6 in.)

360 mm

(1 ft. 2.2 in.)

700 kg

(1550 lb.)

670 mm

(2 ft. 2.4 in.)

775 mm

(2 ft. 6.5 in.)

395 mm

(1 ft. 3.6 in.)

750 kg

(1650 lb.)

730 mm

(2 ft. 4.7 in.)

845 mm

(2 ft. 9.3 in.)

430 mm

(1 ft. 4.9 in.)

800 kg

(1800 lb.)

795 mm

(2 ft. 7.3 in.)

915 mm

(3 ft.)

465 mm

(1 ft. 6.3 in.)

850 kg

(1880 lb.)

855 mm

(2 ft. 9.7 in.)

990 mm

(3 ft. 3 in.)

505 mm

(1 ft. 7.9 in.)

870 kg

(1950 lb.)

880 mm

(2 ft. 10.6 in.)

1015 mm

(3 ft. 4 in.)

515 mm

(1 ft. 8.3 in.)

900 kg

(2000 lb.)

915 mm

(3 ft.)

NOT OK

540 mm

(1 ft. 9.3 in.)

1150 kg

(2550 lb.)

NOT OK

NOT OK

720 mm

(2 ft. 4.3 in.)

OUCC006,0001AF1-19-20130913
