Hydraulic Connections: MEMOSYSTEM Valve for 2-Function Loader

CC1034514-UN-30JUN11

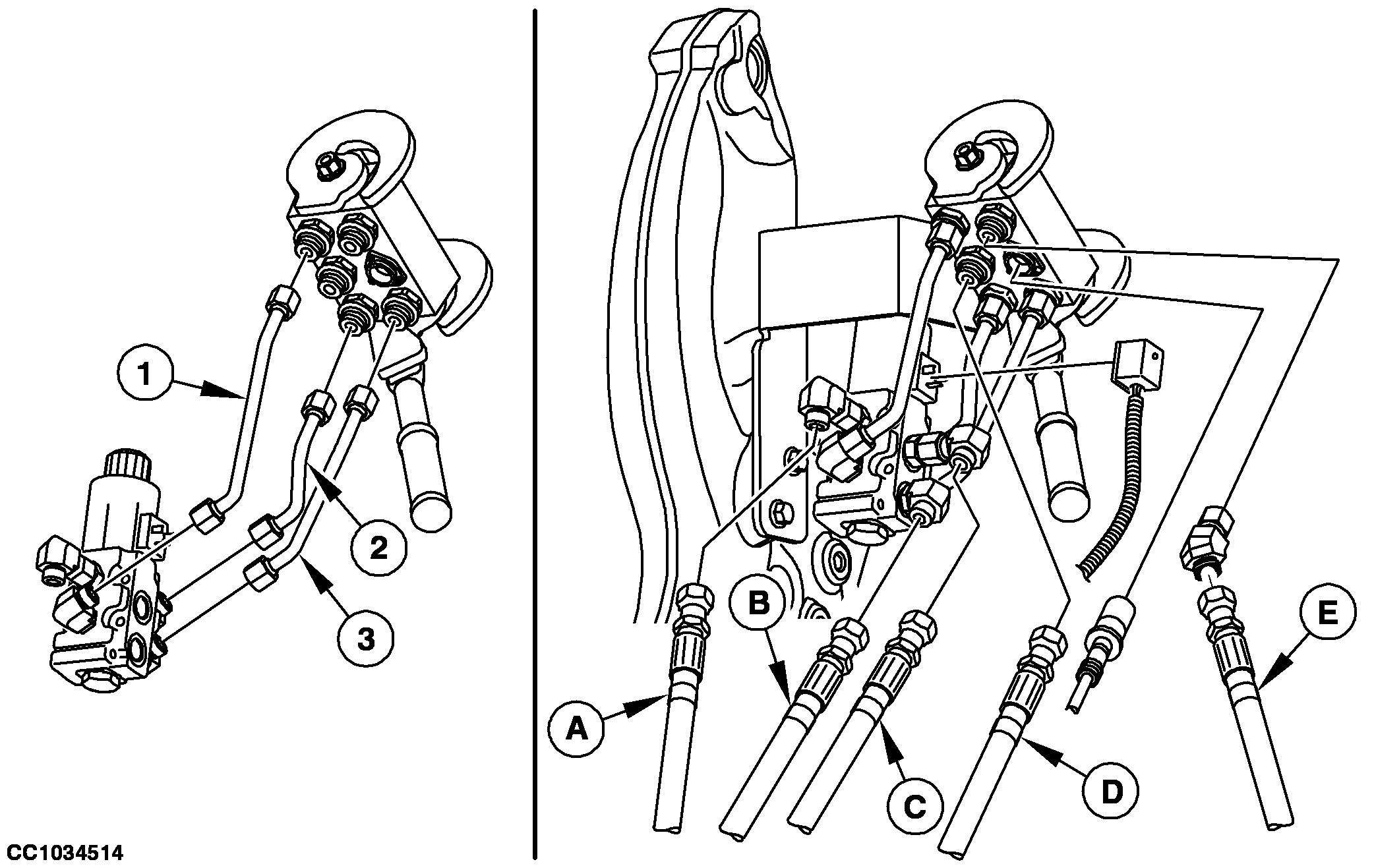

Key	Color	Hydraulic Function
A	Black	Bucket Cylinder—Rod End and Compensating Cylinder—Retract
B	Yellow	Bucket Cylinder—Head End and Compensating Cylinder—Extend
C	Red	Boom Cylinder—Retract
D	Gray	Drain Hose (only for hydraulic self-leveling (HSL) Loader)
E	Blue	Boom Cylinder—Extend
1	Red	Boom Cylinder—Retract
2	Black	Bucket Cylinder—Rod End and Compensating Cylinder—Retract
3	Yellow	Bucket Cylinder—Head End and Compensating Cylinder—Extend
