Every 300 Hours: Main Drive Gear Case (With COMER Gear Case)

Change the oil in the COMER® main drive gear case every 300 hours of operation.

1.

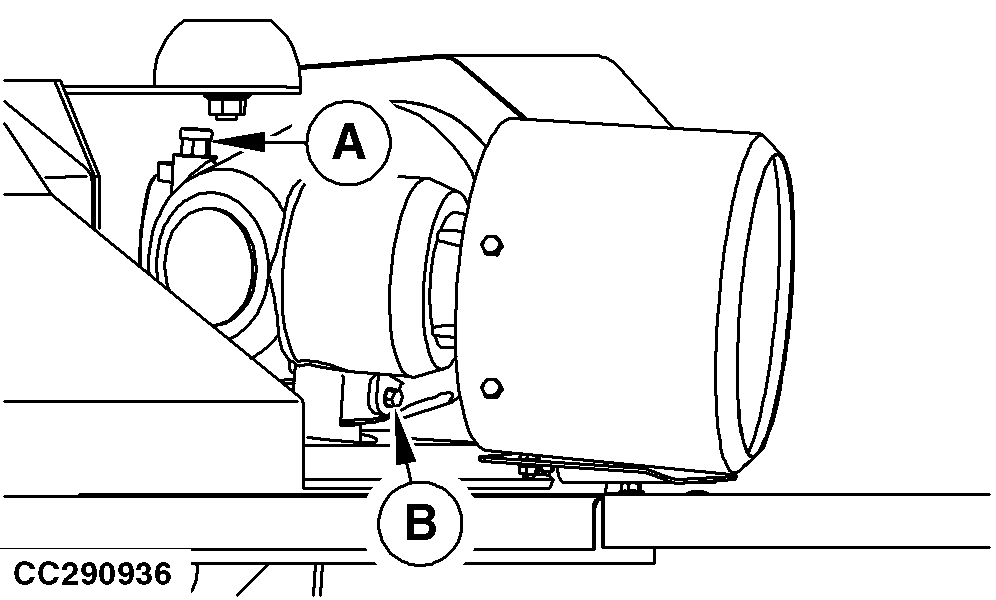

   CC290936-UN-26SEP16

   A - Refill Plug

   B - Drain Plug

   Drain the oil while it is hot (i.e. after operation).

---




2. Level gear case.

3. Pull out refill plug (A).

4. Place a suitable receptacle under drain plug (B).

5. Pull out drain plug (B) and drain oil.

   NOTE: Clean all plugs before reinstalling them.

6. Reinstall drain plug (B).

7. Refill the main drive gear case with specified quantity of oil:

   Item	Measurement	Specification
   Main drive gear case oil	Quantity	2.7 L (0.71 US gal)

   Use oil specified under Gear Case Oil in this Section.

8. Reinstall refill plug (A).
