Attach PTO Driveline

TS198-UN-23AUG88

CC8570-UN-03FEB97

CAUTION: Always shut off tractor engine before attaching PTO driveline. Entanglement in rotating driveline can cause serious injury or death.

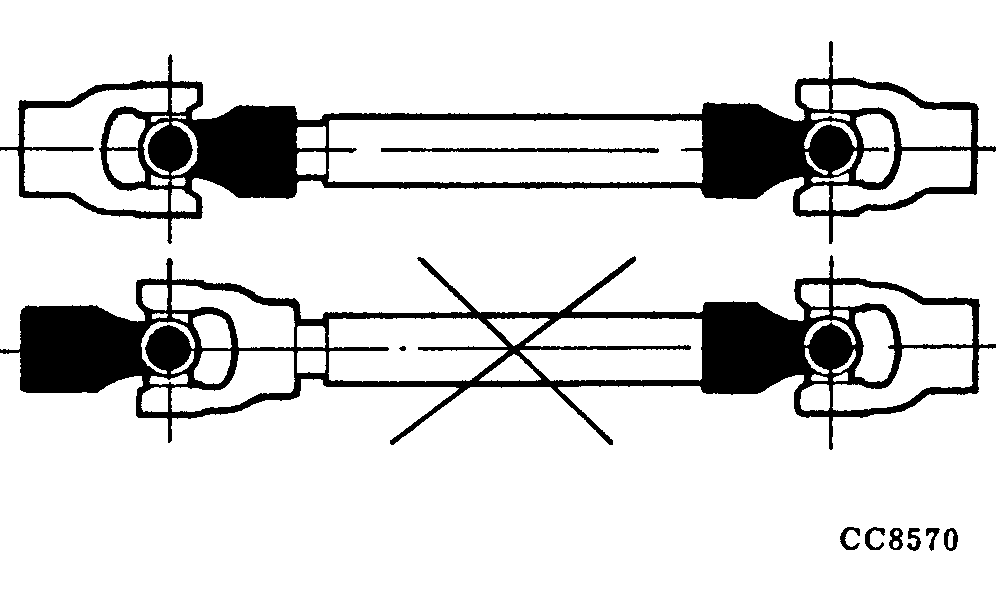

IMPORTANT: Make sure that telescoping members are assembled so that joint planes are in proper position as shown.

Keep hook-up and PTO shaft splines free from paint, dirt, chaff and burrs. Apply John Deere Moly High Temperature EP Grease or John Deere EP Moly Grease on tractor PTO shaft before attaching PTO driveline.

Never use a steel hammer to connect or disconnect the hook-up on PTO shaft.

Refer to the basic telescoping hook-up Operator's Manual to properly connect telescoping hook-up to the tractor PTO shaft.

1.
   CC1026412-UN-07OCT04

   Connect PTO Shaft


   CC1026411-UN-17SEP04

   A - Chain

   B - PTO Shield

   C - Collar

   D - Cone Guard

   Shut off tractor engine.

---




2. Raise tractor PTO shield (B), if equipped.

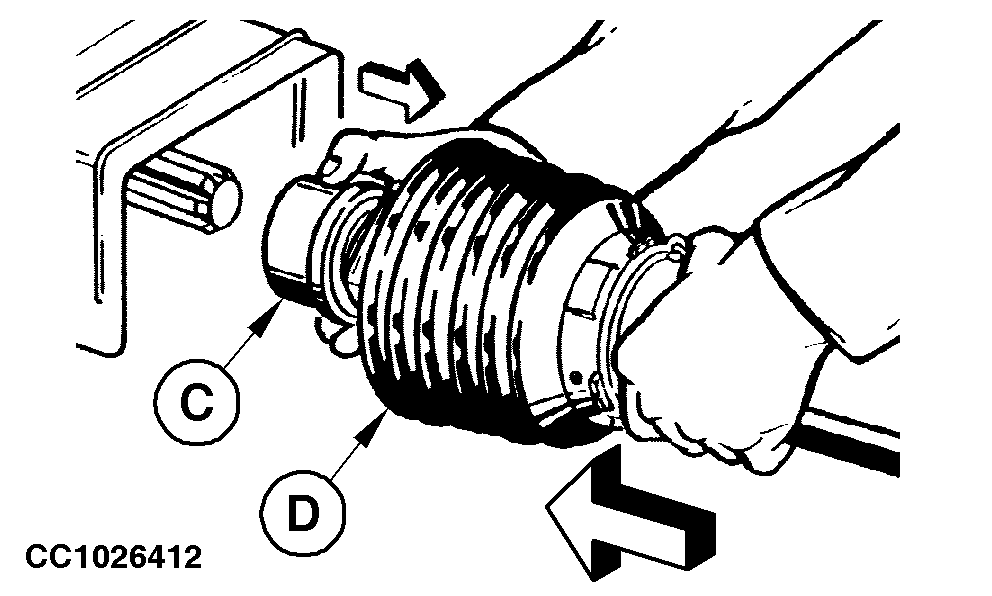

3. Pull back on collar (C). Collar will "click" and hold in ready position.

4. Align splines by rotating mower-conditioner driveline. Push driveline onto tractor PTO shaft until collar (C) snaps forward. Locking collar (C) will ”click” two times.

   IMPORTANT: The locking collar (C) must rotate freely to indicate that the telescoping driveline is correctly latched to the tractor PTO shaft.

5. Attach chain (A) to the provided attaching hole on the tractor.

6. To check if driveline is latched, pull back on guard (D). Do not pull on collar (C), as this will release latch.

7. Lower tractor PTO shield (B).

NOTE: Make sure that telescoping hook-up is properly adjusted. (See Adjust Telescoping Hook-Up in Preparing the Mower-Conditioner Section.)
