Adjust Rear Tread of Tractor

W00851-UN-04JUN93

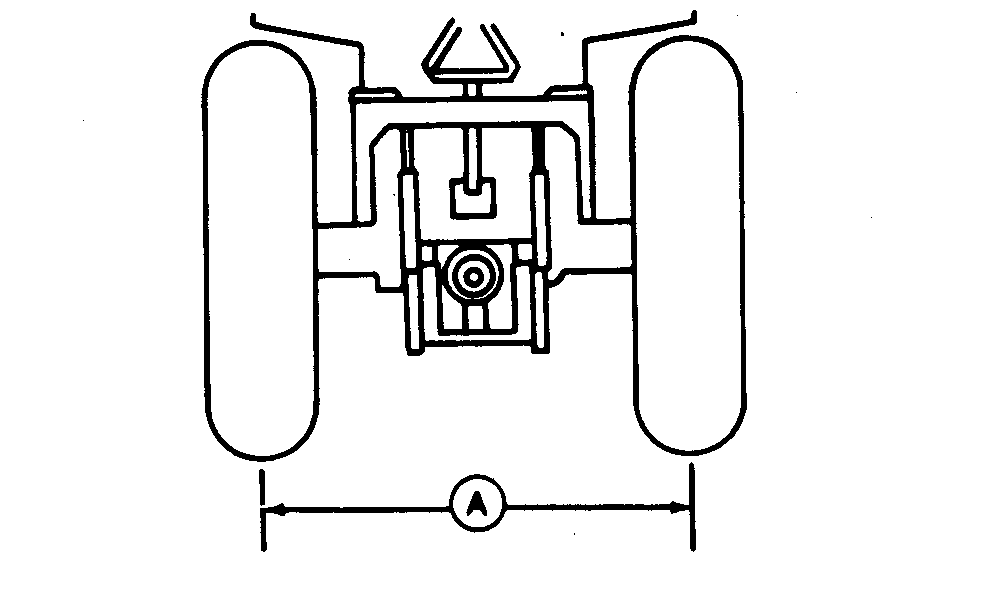

A - Tractor Rear Tread

To help prevent personal injury or death from rollover, use the widest distance from tire center to tire center (A) to maximize stability. Never use a rear tread setting below those specified in the following table.

Tractor Mass	Minimum Rear Tread Setting
Less than 2250 kg (4950 lb.)	1575 mm (5 ft 2 in.)
2250—3650 kg (4950—8030 lb.)	1675 mm (5 ft 5.9 in.)
More than 3650 kg (8030 lb.)	1825 mm (5 ft 11.8 in.)

See your tractor operator's manual to make adjustments.
