Operate Loader with Joystick

If equipped with another design of joystick (1), see your tractor Operator’s Manual.

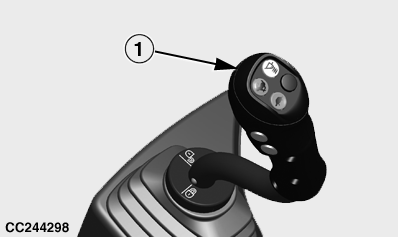

CC244298-UN-19MAY15

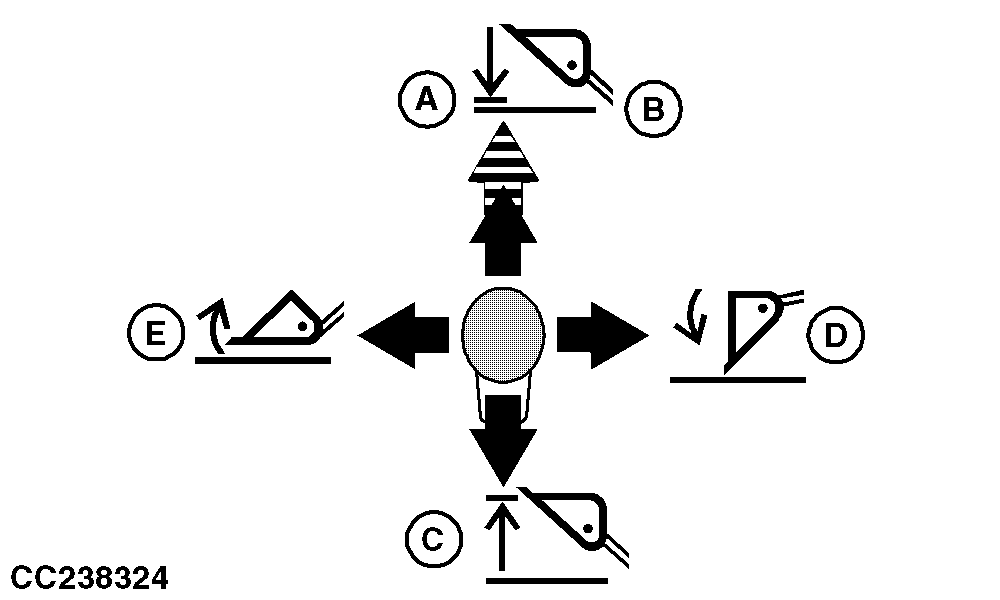

CC238324-UN-23APR15

1 - Joystick

A - Lower Boom

B - Boom Float

C - Raise Boom

D - Dump Bucket or Implement

E - Roll Back Bucket or Implement

Operate loader from operator's seat only. Remain at controls until operating cycle is completed.

Joystick returns to NEUTRAL by itself from all positions except FLOAT. Pull back joystick to release from FLOAT.

Oil flow limitations can prevent multiple loader operations at same time. The operation that requires the least amount of hydraulic force functions first.

Key	Joystick Movement	Loader Operation
A	Forward	Lower Boom
B	Locked Forward	Boom Float
C	Backward	Raise Boom
D	Right	Dump Bucket or Implement
E	Left	Roll Back Bucket or Implement
