Lock and Unlock Joystick

If equipped with another design of joystick, see your tractor Operator's Manual.

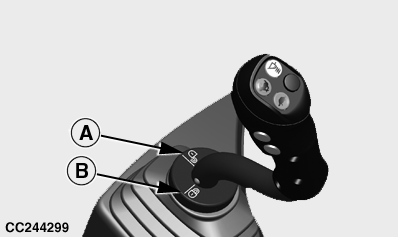

CC244299
CC244299-UN-19MAY15

A - Unlock Position

B - Lock Position

Joystick can be locked in neutral to prevent unintentional movement. To lock the joystick, rotate lock to position (B) while the joystick is in neutral position.

To unlock the joystick, rotate lock to position (A).

DC82261,00005F8-19-20150721
