Operate 3rd and 4th Functions with 2-Function Loader Control Valve and Diverter

If equipped with another design of joystick, see your tractor Operator's Manual.

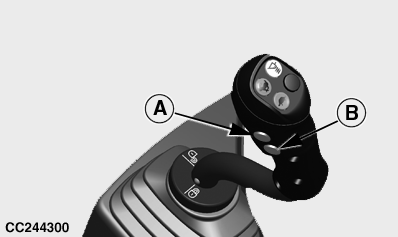

CC244300-UN-19MAY15

A - 3rd Function

B - 4th Function

As soon as the switches for 3rd or 4th function are released, the control lever goes back to its primary functions: dump to the right side and roll back to the left side.

To activate 3rd or 4th function:

• Select 3rd function by continuously pressing button (A).
• Select 4th function by continuously pressing button (B).

Push the lever to the right side to open the implement or pull it to the left side to close the implement.
