Gearshift Buttons on the Joystick (Tractor with PowrQuad™ PLUS, AutoQuad™, and PowrReverser™ Plus Transmission)

CC1036913
CC1036913-UN-01FEB12

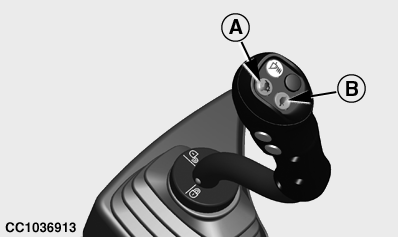

Joystick

A - Gear Shift Up

B - Gear Shift Down

The gearshift buttons allow the operator to change gear in a range without taking the range shift lever.

If allowed by local traffic regulations, it is recommended to lock the joystick when driving on public roads. See Lock and Unlock Joystick in this section.

Press button (A) to shift up gear.

Press button (B) to shift down gear.

DC82261,00005FB-19-20150518
