Operate 3rd and 4th Functions with 3-Function Loader Control Valve

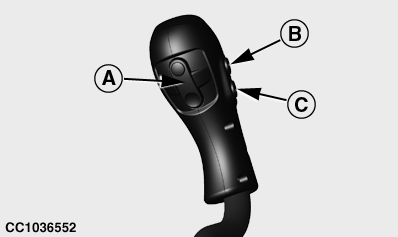

CC1036552-UN-27JAN12

A - Rocker Switch

B - 3rd Function

C - 4th Function

To avoid unexpected movement, always select the desired function by pressing button (B) or (C) before actuating the rocker switch (A).

4th function needs the front-end implement to be fitted with the required diverter valves.

On loader equipped with 3rd and 4th functions operated by 3-Function Loader Control Valve:

• Select 3rd function by pressing and releasing button (B).
• Select 4th function by pressing and releasing button (C).

Open and close implement:

Press on top of rocker switch (A) to open the implement and on bottom of rocker switch (A) to close it.
