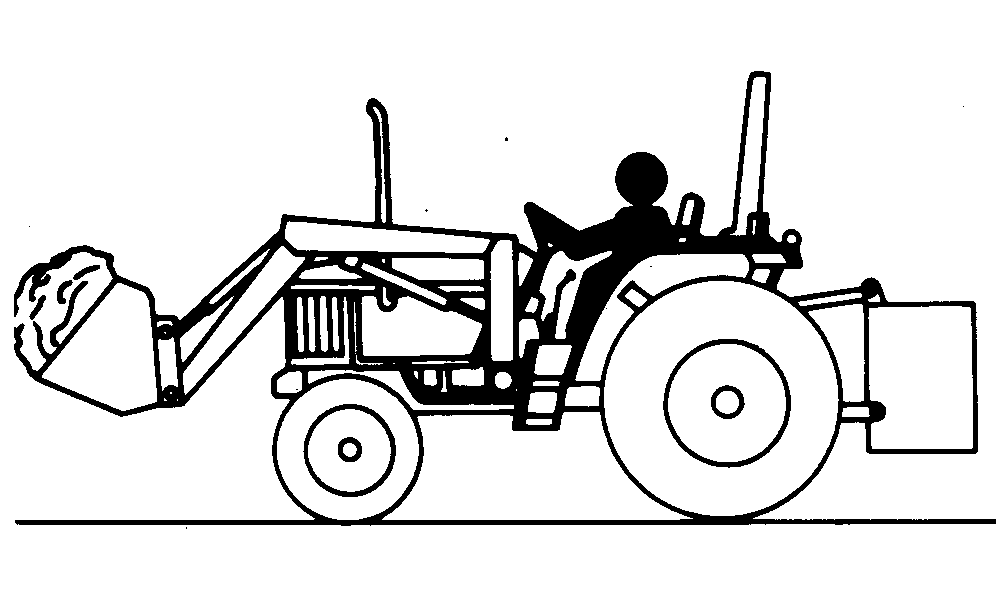

Carry Loads

TS1701-UN-10JUL12

While operating loader, observe the following precautions:

Reduce speed as required to ensure good tractor and loader stability.

Due to capacity limitations of some tires, travel speed may have to be reduced when carrying loads. See Application Charts section for approved front tire and ballast requirements.

• Carry loads close to the ground to aid visibility and to lower center of gravity.
• Loader makes a large arc when turning. Reduce travel speed and allow for additional length of loader.
• Balance loads so weight is evenly distributed and load is stable.
• Drive slowly if carrying loose materials. Rough conditions can cause material to spill.
• Avoid carrying loads wider than the bucket or tractor.
