Operate Electrical Safety Device (if Equipped)

CC244301-UN-22JUN15

Lift Cylinders

CC244303-UN-22JUN15

Dump Cylinders

W21877-UN-28SEP11

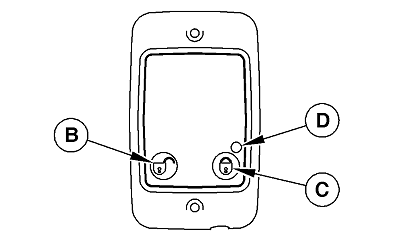

Switch in Cab

CC1028914-UN-28NOV06

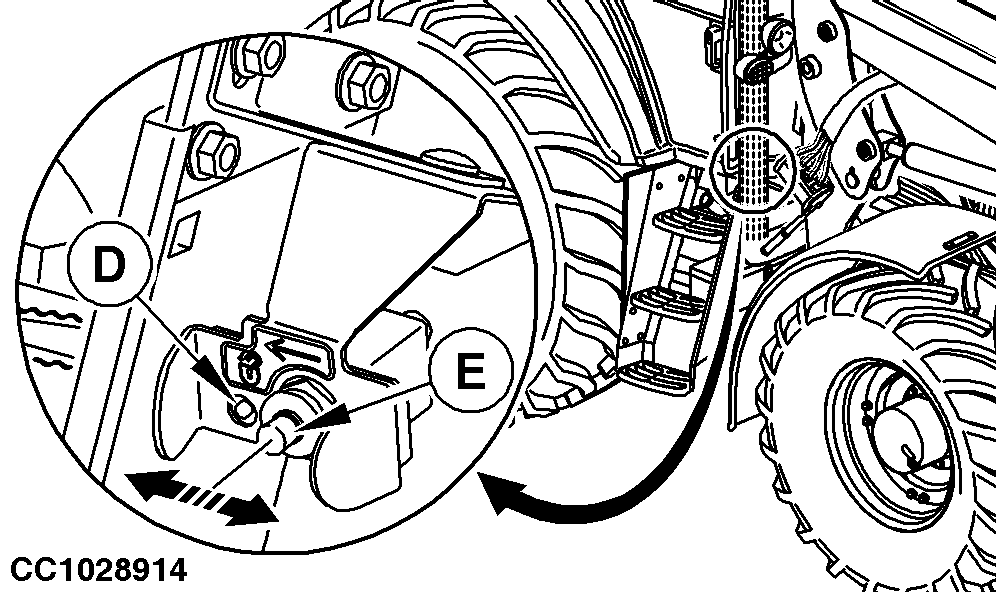

External Switch

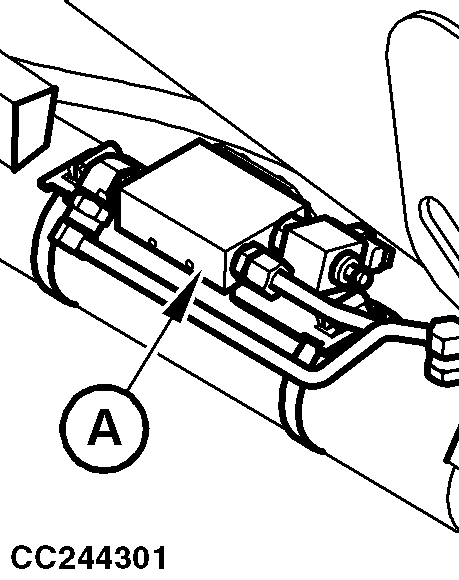

A - Electrical Shut-Off Valve

B - Unlock Button

C - Lock Button

D - Light

E - Switch

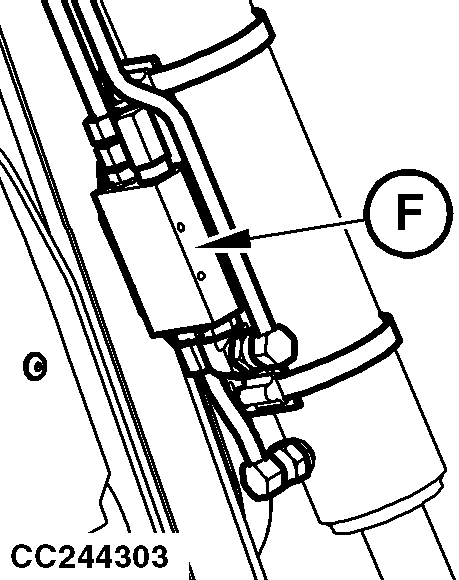

F - Load Holding Valve

This electrical safety device must not be used for servicing hydraulic components.

Before working under or near a raised loader, always check that the electrical safety device is in locked position and the loader cannot be lowered by using the loader command device.

When electrical safety device is in locked position, it is possible to raise the loader, but it is impossible to lower loader.

Without pressure, load holding valves are in locked position. Hydraulic pressure in bucket circuit unlocks load holding valves.

This electrical safety device includes electrical shut-off valves (A) on lift cylinders and load holding valves (F) on dump cylinders.

Put Electrical Safety Device Into Locked Position:

When tractor engine is shut off or when tractor engine is started, electrical shut-off valves and load holding valves are automatically in locked position.

To put electrical safety device into locked position, proceed as follows:

1. Load holding valves are automatically in locked position.

   Press button (C) or use switch (E) to secure the loader.

   Light (D) appears when electrical shut-off valves are in locked position.

2. Raise loader to the desired height.

3. Check with the loader command device that electrical safety device is in locked position.

Put Electrical Safety Device Into Unlocked Position:

Before placing the electrical safety device into unlocked position, make sure that there is nobody near or under the loader.

1. Press button (B) or use switch (E).

   Light (D) is off when electrical shut-off valves are in unlocked position.

2. Lower the loader to the ground.
