Set Teeth Spacing on Bale Spike with Foldable Teeth

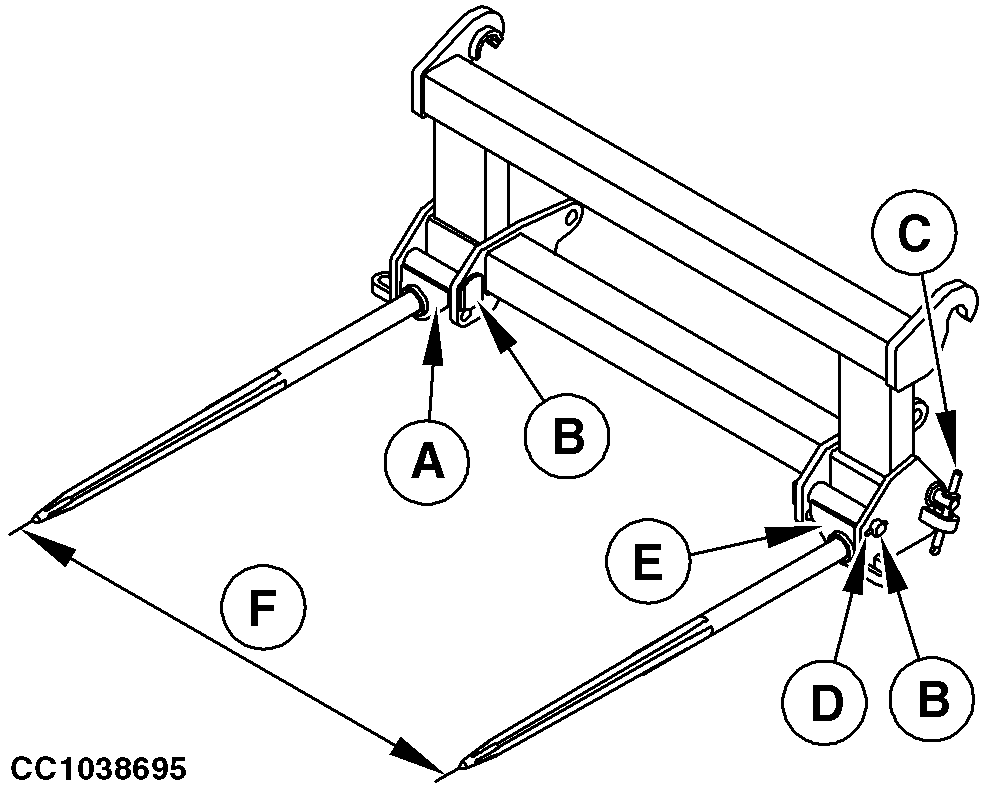

CC1038695-UN-10DEC12

A - Tooth Bracket

B - Pivot Pin

C - Locking Pin

D - Cotter Pin

E - Tooth Bracket

F - Spacing Between Teeth

1. On both sides, remove locking pins (C), cotter pins (D) and pivot pins (B).

2. Remove tooth brackets (A) and (E).

3. Install tooth brackets (A) and (E) in order to obtain desired spacing value between teeth (F):

   • Tooth bracket (A) installed on right side and bracket (E) installed on left side (position shown).

     Spacing Between Teeth	Distance	960 mm (3 ft. 1.8 in.)

   • Tooth bracket (A) installed on left side and bracket (E) installed on right side.

     Spacing Between Teeth	Distance	860 mm (3 ft.)




4. Install pivot pins (B), cotter pins (D) and locking pins (C).
