Operate Round Bale Grapple and Round Bale Gripper

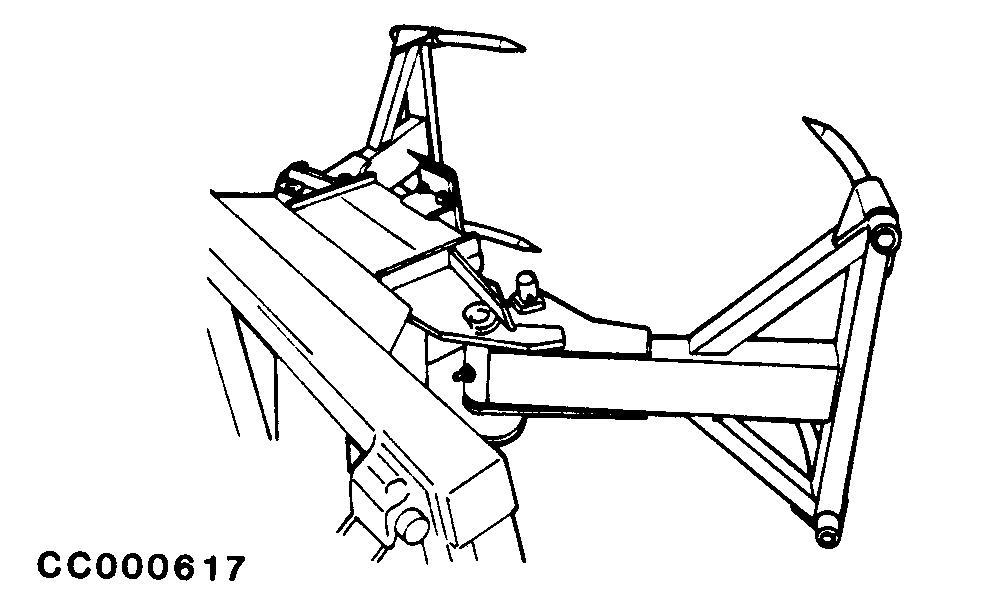

CC000617-UN-29MAR95

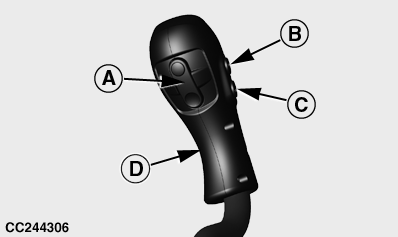

CC244306-UN-02JUN15

A - Rocker Switch

B - 3rd Function

C - 4th Function

D - Joystick

DO NOT handle bales that exceed maximum implement bale weight capacity. See Implements section to obtain maximum bale weight capacity for each implement.

1. Bale grapple and gripper operated with a 3-function LCV

   Press and release button (B) to select the third function. Press on bottom of rocker switch (A) to close the arms, press on top of rocker switch (A) to open the arms.

2. Bale grapple and gripper operated with a 2-function LCV and diverter valve

   Continuously press button (B) then move lever (D) to the left-hand side to close the arms and to the right-hand side to open them.

   Move the lever to the neutral position before releasing button (B).

If opening and closing response is opposite to control movement, reverse the hydraulic connections on the implement.

The articulated bale gripper is specially designed to handle plastic wrapped silage bales.
