Every 10 Hours - MSL Loaders

Pivot points must be lubricated after each high-pressure washing.

The loader can be greased when it is detached or when it is on tractor.

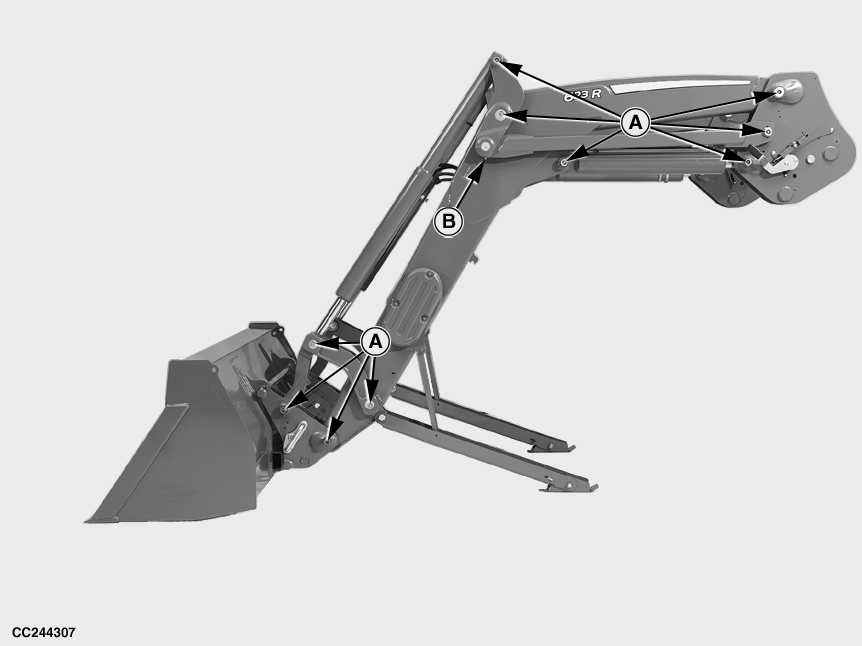

CC244307-UN-01JUL15

Pivot Points

A - Fitting

B - Fitting (1 each side)

Help prevent personal injury caused by unexpected movement of the loader. Lower loader to the ground, engage park brake or place transmission in PARK, shut off engine and remove key before lubricating or servicing the loader.

Level implement and lower it to ground.

Lubricate 20 fittings (A) and 4 fittings (B), 12 on each side of loader.
