Adjust Flow Rate and Timed Detent of Tractor Control Valves

CC000567-UN-29MAR95

SCV

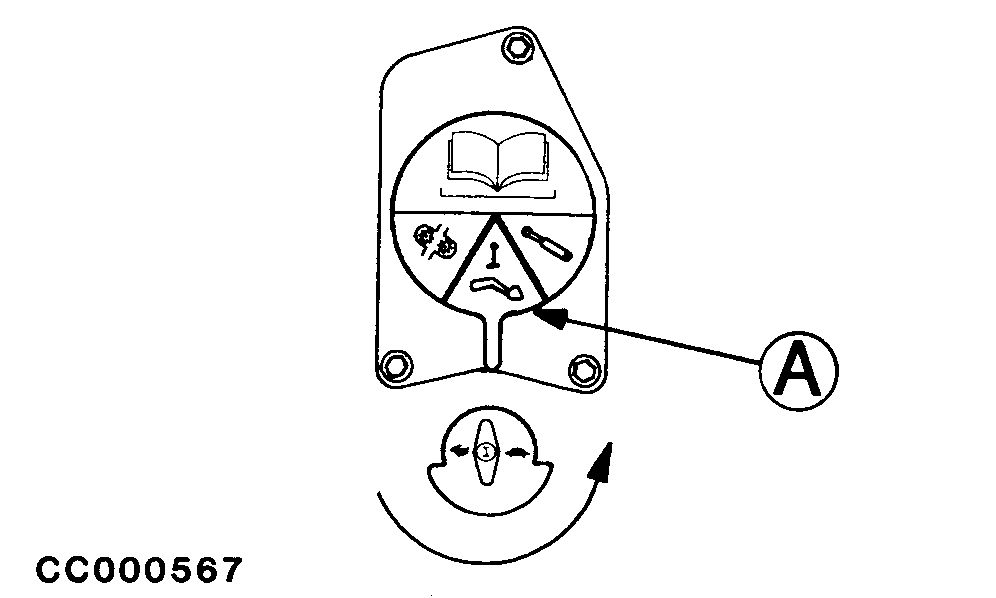

A - Detent Selector Knob

Help prevent personal injury or death caused by objects falling on the operator. Selective and loader control valves have automatic cylinder extend and/or retract position (detent) that must be locked out for loader operation. Unintentional movement of the control lever to the detent position may cause the loader to rise to full height unexpectedly and the load to fall back on the operator.

On loaders operated with SCV, turn detent selector knob (A) to front-loader position. See your tractor Operator's Manual to make adjustments.

On loaders operated with ESCV, EHSCV and EHLCV, make sure that the front-loader mode has been activated and set time detent to zero (No Time Detent). See your tractor Operator's Manual to make adjustments.

Detent time is also referred to as shut-off time.

Adjust flow rate so full extension or retraction of cylinders takes at least 2 seconds. See your tractor Operator's Manual to make adjustments.

Excessive operating speed can cause damage or injury.

SCV: Selective Control Valve

ESCV: Electronic Selective Control Valve

EHSCV: Electro-Hydraulic Selective Control Valve

EHLCV: Electro-Hydraulic Loader Control Valve
