Operate Lift Cylinder Mechanical Locks (Australia Only)

CC006755-UN-28MAR95

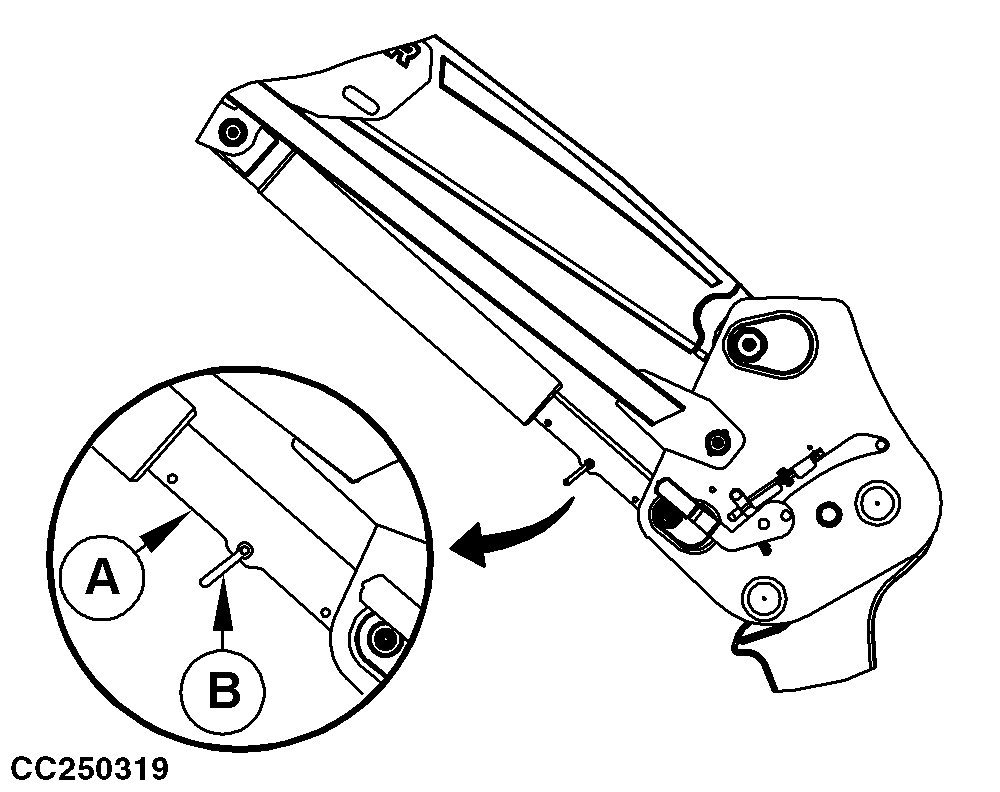

CC250319-UN-24AUG15

A - Lift Cylinder Mechanical Locks

B - Screws and Crank Arms

Install Lift Cylinder Mechanical Locks:

1. Remove any load from bucket or implement.

   Avoid machine damage. Do not lower loader onto lift cylinder mechanical locks with hydraulic pressure applied or with load in bucket.

2. Engage park brake.

3. Place transmission in PARK.

4. Remove lift cylinder mechanical locks (A) from their storage position.

5. Raise loader and dump bucket or implement.

6. Shut off tractor engine and remove key.

   Avoid injury or death. Do not stand under a raised loader. Stand to side of tractor and loader when working with lift cylinder mechanical locks.

7. Position lift cylinder mechanical locks (A) on both boom cylinders as shown.

   Lift cylinder mechanical lock (A) must be positioned on the top of the cylinder rod.

8. Retain lift cylinder mechanical locks (A) with screws and crank arms (B).

9. Slowly relieve pressure from the hydraulic system.

Remove and Store Lift Cylinder Mechanical Locks:

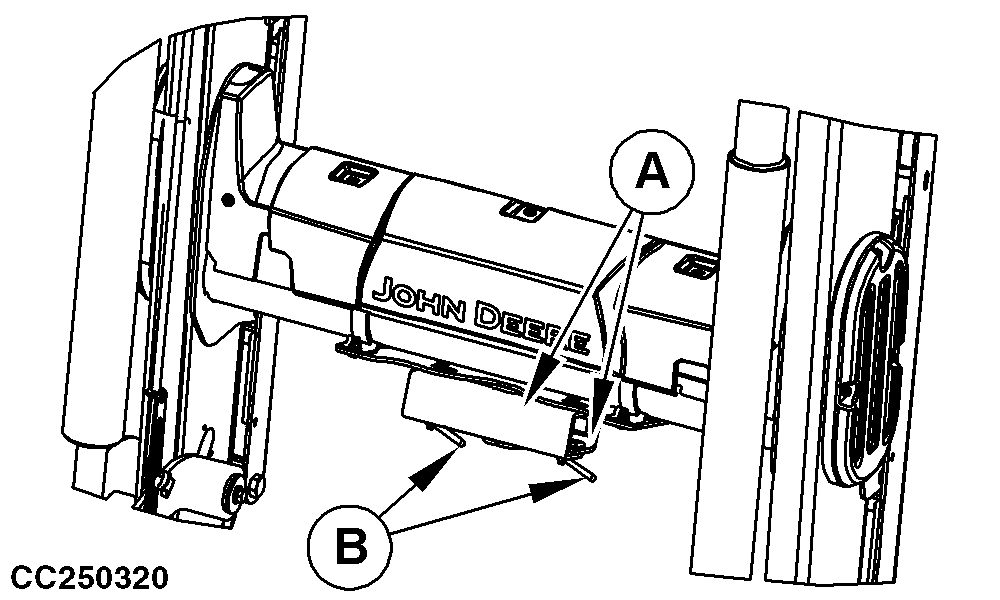

CC250320-UN-24AUG15

A - Lift Cylinder Mechanical Locks

B - Screws and Crank Arms

Avoid injury or death. Do not stand under a raised loader. Stand to side of tractor and loader when working with lift cylinder mechanical locks.

1. Raise loader.

2. Shut off tractor engine and remove key.

3. Remove screws and crank arms (B), then remove lift cylinder mechanical locks (A) from cylinders.

4. Lower loader to the ground.

5. Install both lift cylinder mechanical locks (A) on their storage bracket, then install screws and crank arms (B) as shown.
