Record Serial Number

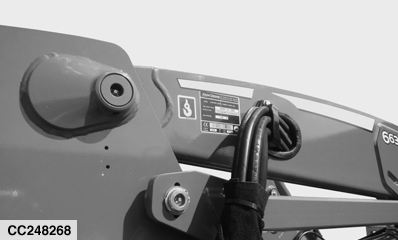

CC248268-UN-07JUL15
Each machine has the serial number plate shown. The letters
and numbers on the plate identify a component or assembly. ALL the
characters are needed to order parts, identify a machine for any John Deere™ product
support program, or trace the machine if stolen. When ordering parts,
always furnish model and serial number as given on serial number plate.
The number assists your John Deere dealer in giving you prompt and
efficient service.
Loader serial number plate is located on outside of right boom.
Record the serial number in the space provided.

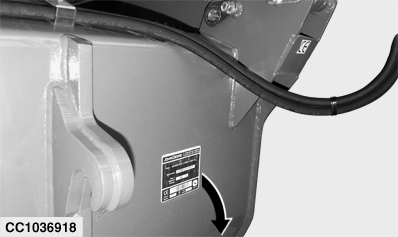

CC1036918-UN-03FEB12
If the front implement has a serial number plate, record
the serial number in table below.
|
Front Implement Model
|
Identification (Serial) Number:
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
John Deere
is a trademark of Deere & Company
|
DC82261,000062E-19-20150716
|
|
