Store Loader and Implements

W14000-UN-05OCT88

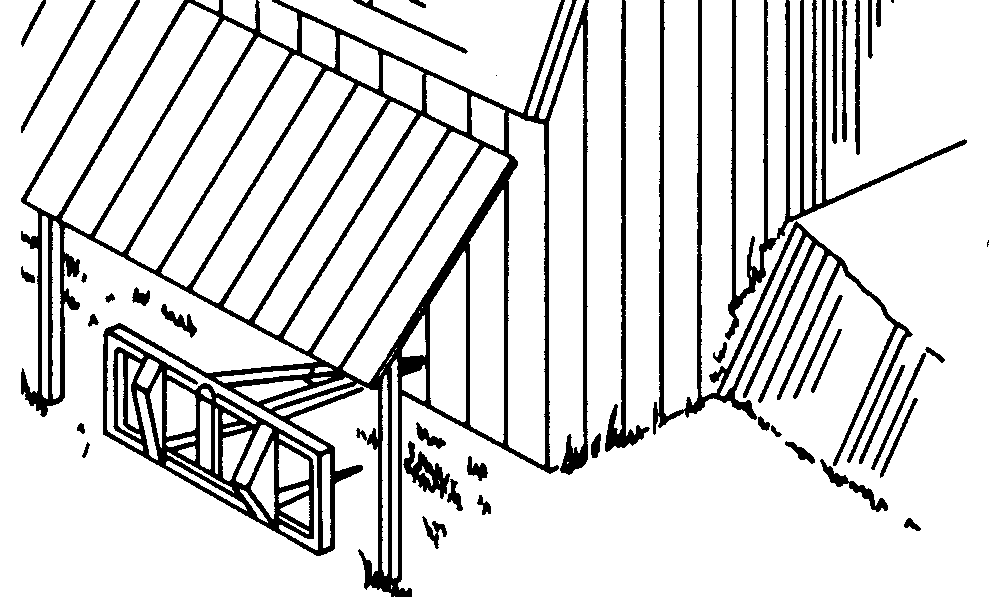

Store loader in a dry, protected place. If stored outside, cover with a waterproof material.

Retract all hydraulic cylinders, if possible. If not, apply grease to any exposed cylinder rods to prevent rusting.

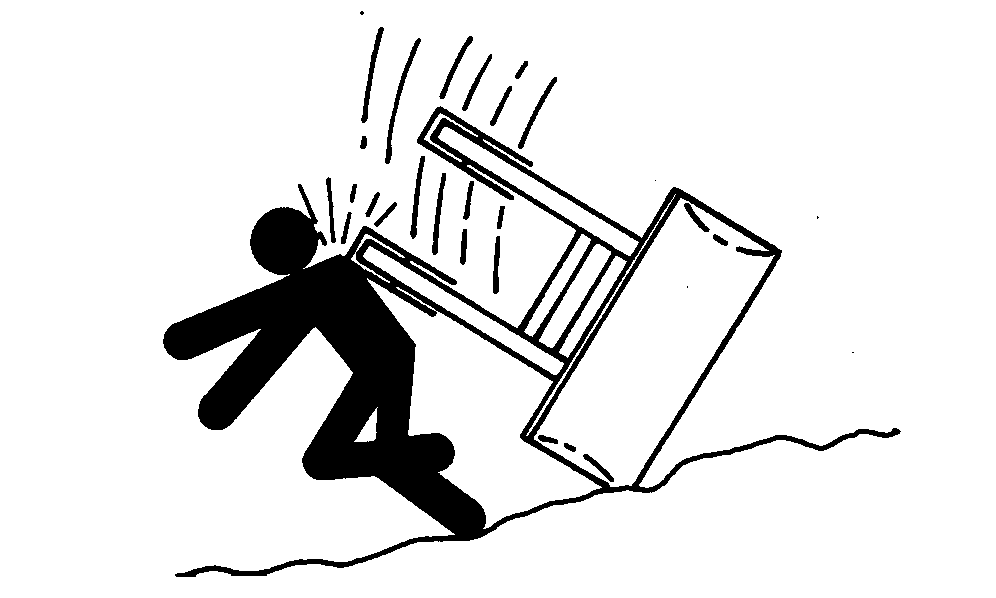

Avoid serious injury or death, detached loader can fall. Store loader with bucket or implement attached to prevent falling. Keep playing children and bystanders away from storage area.

W26679-UN-01APR15

W00267-UN-27NOV91

• Park and detach loader in dry and protected place. (Refer to Detach Loader in Attach and Detach Loader section.)
• Apply grease to any exposed cylinder rods to prevent rusting.

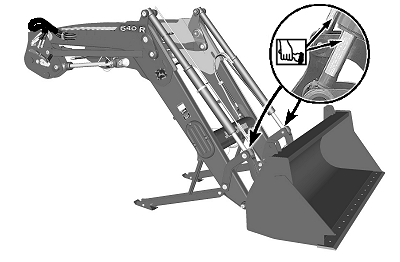

• Store multicoupler on bracket located on right-hand lift cylinder.

Help prevent personal injury due to exposed fork tines. Always store bale fork with tines pointed down, or against bale, building, or other stable object.
