Operate Loader Suspension System

The loader suspension can be deactivated to perform precision tasks.

LED is ON if loader suspension system is activated.

Bucket or implement must be unloaded and lowered to ground before activating or deactivating suspension system.

According to tractor models, loader suspension switch can have different positions.

Tractor with loader suspension switch on the console:

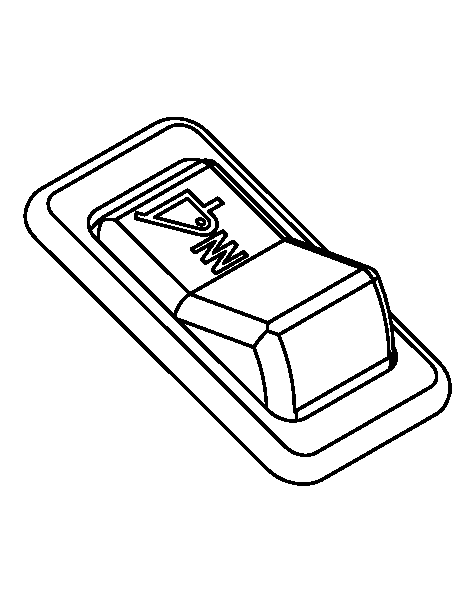

W21872-UN-27SEP11

ON Position

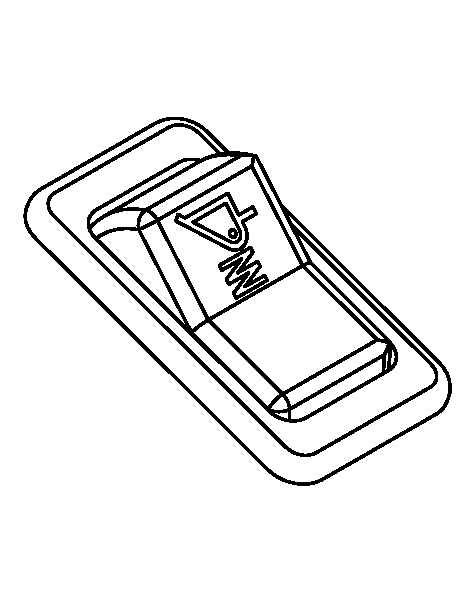

W21873-UN-27SEP11

OFF Position

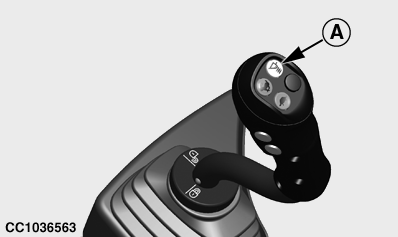

CC1036563-UN-01FEB12

Joystick with Integrated Loader Suspension Control

A - Button

Move switch to ON position to activate loader suspension system.

Move switch to OFF position to deactivate loader suspension system.

Tractor with integrated loader suspension control on joystick:

Press button (A) to activate or deactivate loader suspension system.
