Bucket Level Indicator

CC260671
CC260671-UN-16OCT15

CC277472
CC277472-UN-12APR16

MSL, NSL Loaders

CC277471
CC277471-UN-12APR16

HSL Loaders

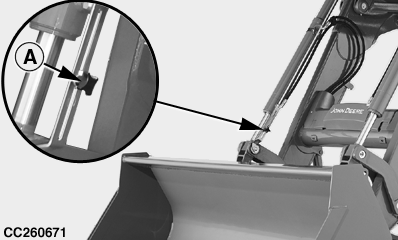

A - Knob

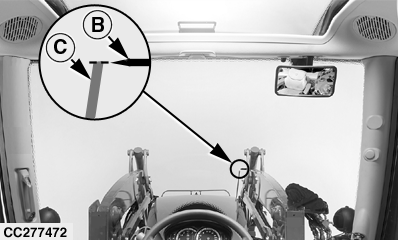

B - Level Indicator

C - Rod

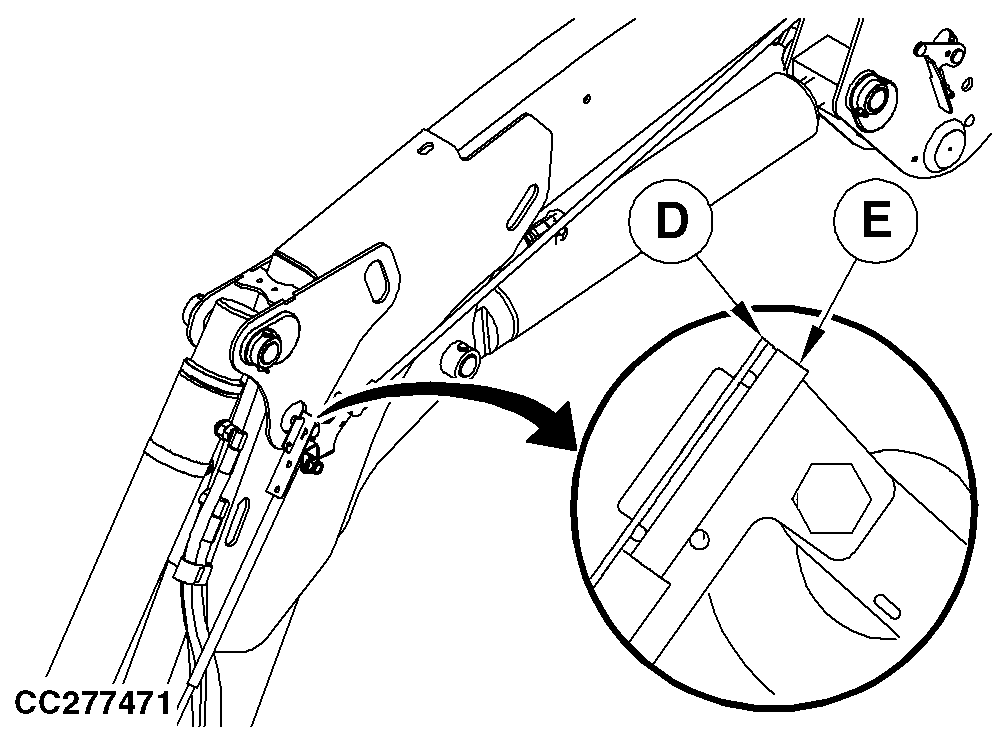

D - Bracket

E - Rod

Indicator position changes with different implements.

Position implement level with ground.

• For NSL and MSL loader: Loosen knob (A) and adjust rod (C) so that end of rod is aligned with level indicator (B) then tighten knob (A).

• For HSL loader: Loosen knob (A) and adjust rod (E) so that end of rod is aligned with top of bracket (D) as shown then tighten knob (A).
