Access Front of Tractor (if Equipped with Foldable Hood Guard)

1.


   CC230289-UN-23JUN15

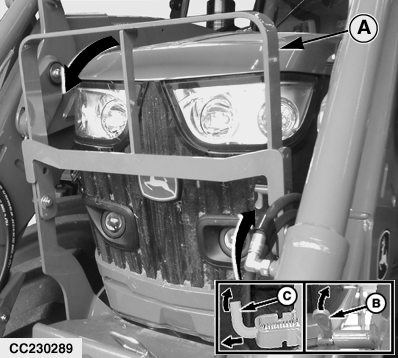

   A - Hood Guard

   B - Latch Pin, Rotating-Type

   C - Latch Pin, Pull-Type

   If unable to access front of tractor with loader attached, either remove loader or raise loader. See Service Loader and/or Tractor Safely in this section.

   Start tractor engine and raise boom.

---




2. Roll bucket until front edge is facing ground.

3. Lower boom to ground and shut off tractor engine.

4. Weight of hood guard (A) can be high. Use caution when handling hood guard as it can drop suddenly when lowered.

   Depending on tractor, hood guard will have either a rotating-type (B) or pull-type (C) latch pin.

   Rotate latch pin (B) or pull out and rotate latch pin (C) and slowly rotate guard (A) forward to access engine compartment.
