Identify Hose Connections: 2-Function Loader with Multicoupler

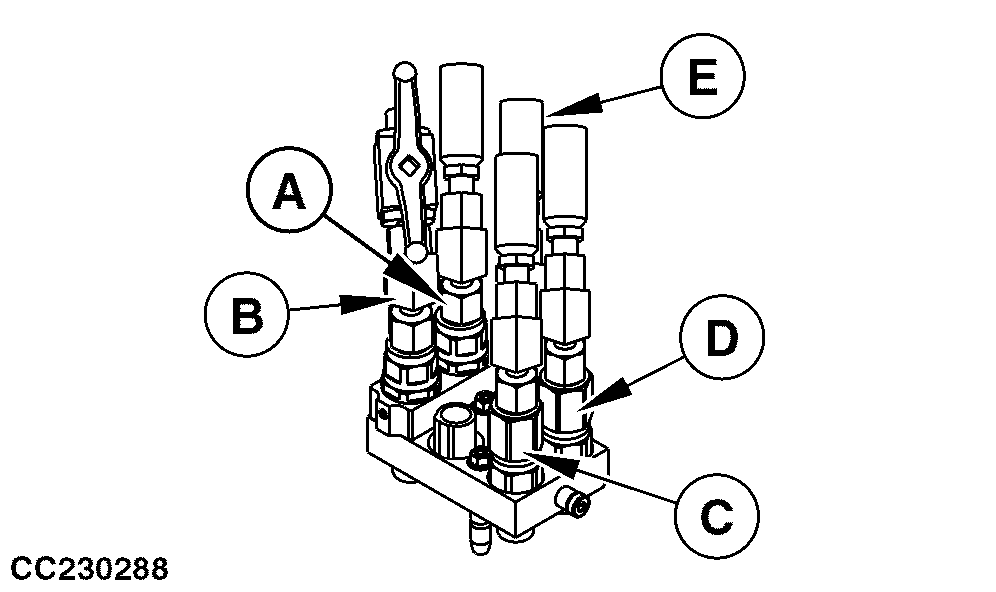

CC230288-UN-29JUN15
Loader Side Multicoupler

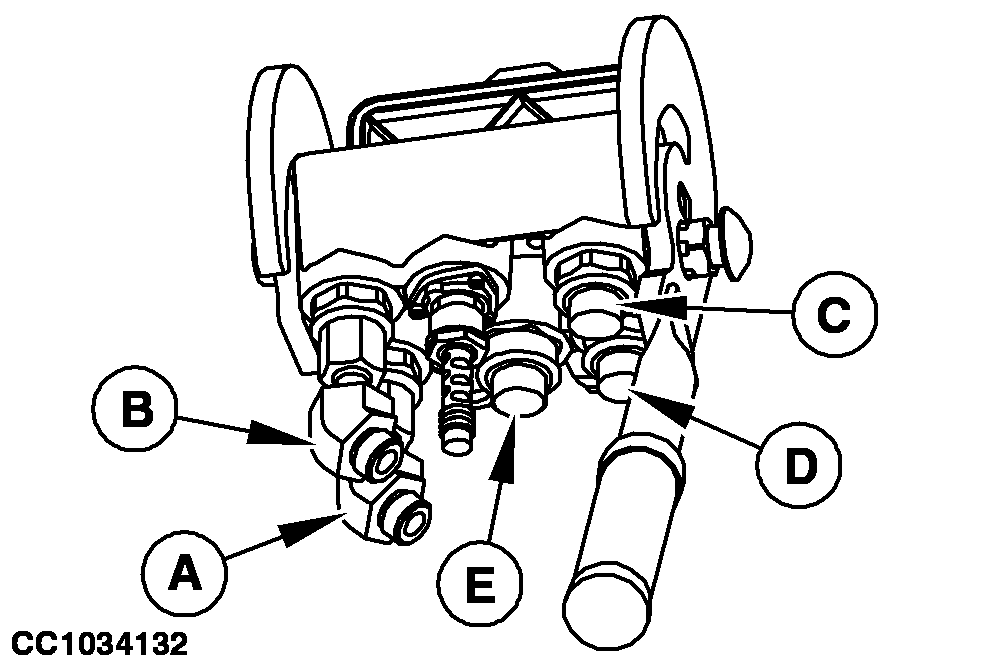

CC1034132-UN-02MAY11
Tractor Side Multicoupler
Connection (E) is only for hydraulic self-leveling (HSL) loaders.
|
Key |
Color |
Hydraulic Function |
|---|---|---|
|
A |
Red |
Lower Loader |
|
B |
Blue |
Raise Loader |
|
C |
Yellow |
Dump Bucket |
|
D |
Black |
Roll Back Bucket |
|
E |
Gray |
Oil Return (only for hydraulic self-leveling Loader) |
|
JC87117,00001C1-19-20150723 |
