Identify Hose Connections: 3-Function Loader with Multicoupler

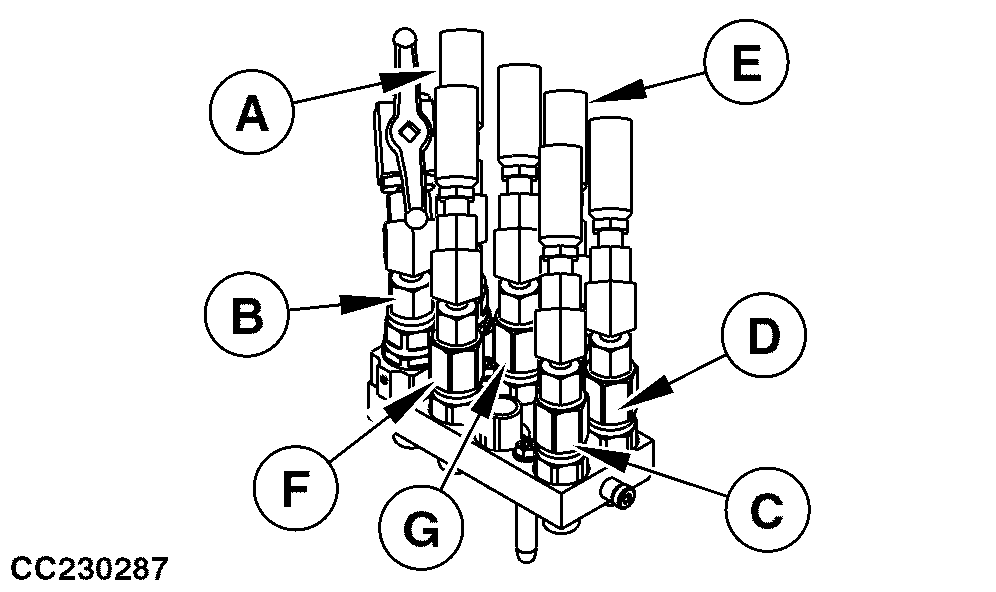

CC230287-UN-29JUN15
Loader Side Multicoupler

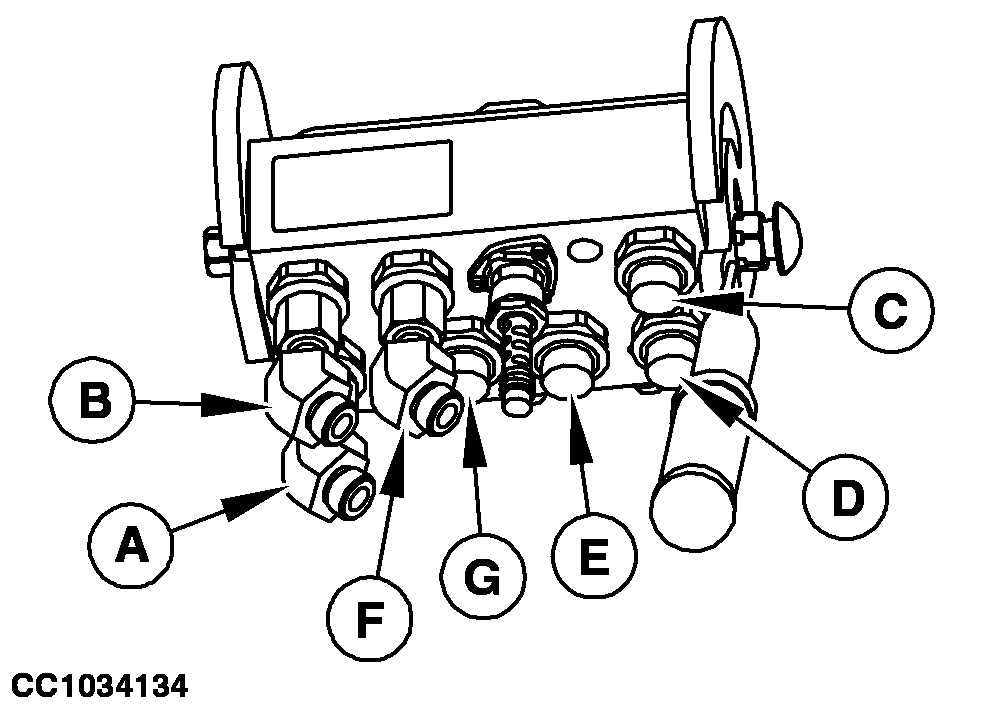

CC1034134-UN-24JUN11
Tractor Side Multicoupler
Connection (G) is only for hydraulic self-leveling (HSL) loaders.
|
Key |
Color |
Hydraulic Function |
|---|---|---|
|
A |
Red |
Lower Loader |
|
B |
Blue |
Raise Loader |
|
C |
Yellow |
Dump Bucket |
|
D |
Black |
Roll Back Bucket |
|
E |
Orange |
Close Grapple |
|
F |
Green |
Open Grapple |
|
G |
Gray |
Oil Return (only for hydraulic self-leveling Loader) |
|
JC87117,00001C2-19-20150723 |
