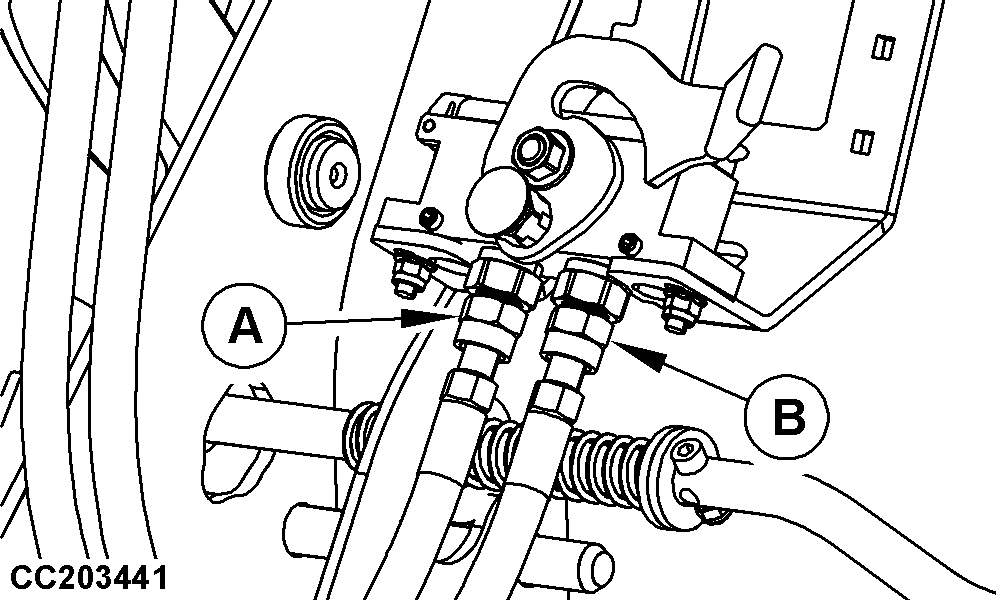

Hydraulic Connections: Multicoupler for 3rd Function
CC203441-UN-10JUN13
|
Key |
Color |
Hydraulic Function |
|---|---|---|
|
A |
Orange |
Close Grapple |
|
B |
Green |
Open Grapple |
|
JC87117,00001C3-19-20150723 |
