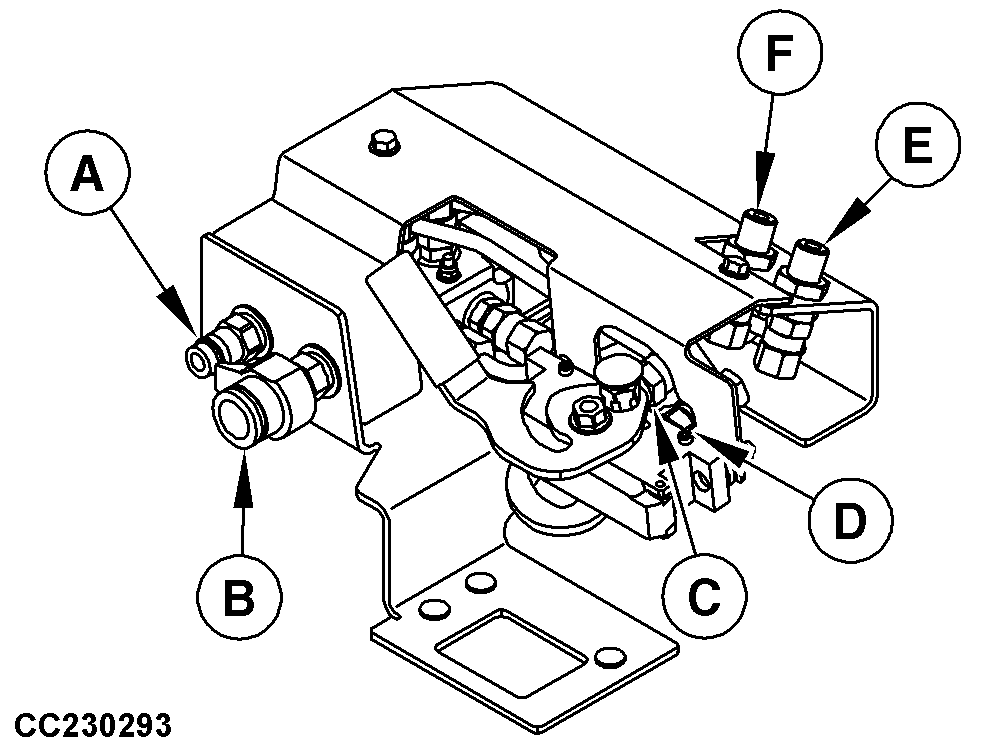

Hydraulic Connections: Multicoupler for 3rd Function and Individual Couplers for 4th Function

CC230293-UN-30JUN15

Key	Color	Hydraulic Function
A	Green	Open Implement Fourth Function
B	Orange	Close Implement Fourth Function
C	Green	Open Grapple
D	Orange	Close Grapple
E	Orange	Close Implement Third Function
F	Green	Open Implement Third Function
