Attach Loader

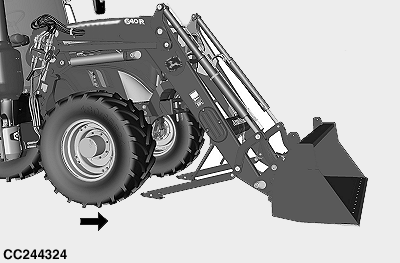

CC244324
CC244324-UN-17JUN15

CC277473
CC277473-UN-14APR16

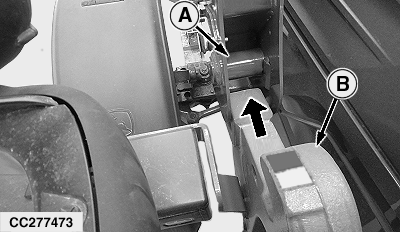

A - Pin

B - Upper Hook

To prevent serious injury, DO NOT allow bystanders nearby while attaching loader.

Allow only tractor operator to attach loader.

Avoid damage to hoses by making sure that hoses do not interfere with tractor when attaching loader.

Verify that mounting frame hooks and mast pins are clear of debris.

Never apply grease on pin (A) nor anywhere on the mounting frame.

For tractors equipped with Triple-Link Suspension (TLS™) front axle, select “Auto Mode” position. See your tractor Operator’s Manual.

  1. Center tractor between loader masts.

    • For loader equipped with individual couplers or load holding valve or electrical safety device, go to step 5.
    • For loader not equipped with individual couplers or load holding valve or electrical safety device, go to next step.

  2. Drive forward making sure that upper hooks (B) are aligned with pins (A) until automatic mast latches mechanisms latch.

    When masts are in contact with mounting frames, turning front wheels in one or the other direction may help latching.

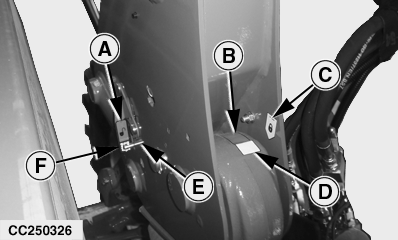

  3. Loader is NOT LATCHED if latch pin indicator (E) or mast indicator label (C) are in any of the RED areas (A) or (B).

    CC250326
    CC250326-UN-18SEP15

    A - Unlatched Position—Red

    B - Unlatched Position—Red

    C - Mast Indicator Label

    D - Latched Position—Yellow

    E - Indicator

    F - Latched Position—Yellow

    Verify latch pin indicators (E) are in latched position (F) on both sides.


  4. Verify mast indicator label (C) and mounting frame indicator (D) are in alignment on both sides.

    • If steps 3 and 4 are not as described, go to step 5.
    • If steps 3 and 4 are as described, go to step 11.

  5. Place transmission in PARK and shut off engine.

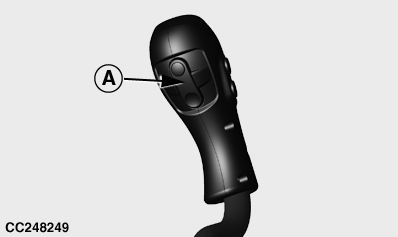

    CC248249
    CC248249-UN-17JUN15

    A - Switch

    Relieve pressure in hydraulic system:

    1. Turn key to ON position. Do not start engine.

    2. Move loader joystick in all directions several times.

    3. If equipped with third function, press switch (A) several times.

    4. Turn key to OFF position.


  6. If equipped with multicoupler, proceed as follows. Otherwise go to next step.

    Make sure shut-off valve (E) is in unlocked position before connecting multicoupler.

    Make sure that fittings are free of dirt and debris before connecting multicoupler.

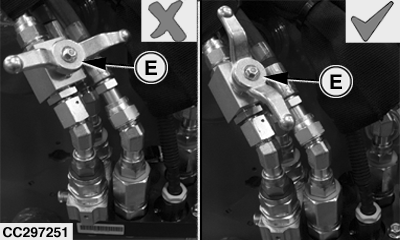

    CC297251
    CC297251-UN-03NOV16

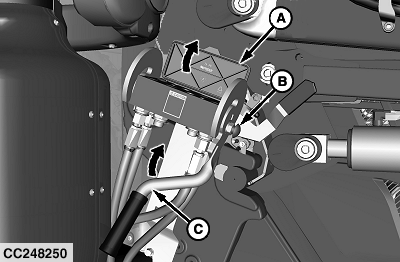

    CC248250
    CC248250-UN-17JUN15

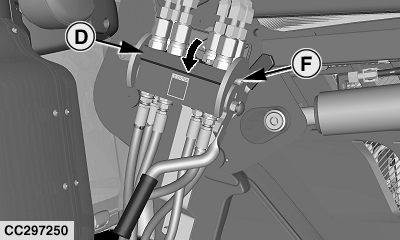

    CC297250
    CC297250-UN-28OCT16

    A - Cover

    B - Knob

    C - Lever

    D - Loader Multicoupler

    E - Shut-Off Valve

    F - Pin (1 on each side)

    1. Push knob (B) and rotate lever (C) upwards.

    2. Lift cover (A) and insert loader multicoupler (D).

    3. Rotate lever downwards to engage pins (F) and lock multicoupler.

    4. Connect electrical harnesses (if equipped).


  7. If equipped with individual coupler, proceed as follows.

    CC297252
    CC297252-UN-03NOV16

    A - Individual Coupler, Male

    B - Individual Coupler, Female

    C - Plug

    D - Cap

    E - Shut-Off Valve

    Avoid personal injury caused by unexpected loader movement. Hose connections must be correct for loader to respond as expected when control lever is moved.

    Make sure shut-off valve (E) is in unlocked position before connecting coupler.

    Before connecting coupler make sure that fittings are free of dirt and debris.

    Hose connections have color-coded caps and plugs. If caps and plugs are missing, see Identify Hose Connections: Individual Couplers in the Service section.

    1. Push and hold collar on female coupler (B).

    2. Match color-coded cap on hose end with same color-coded plug on the coupler. Insert hydraulic hose with male coupler (A) into female coupler (B).

    3. Release collar on female coupler (B).

    4. Connect color-coded plug (C) and cap (D) together.

    5. Repeat procedure for all couplers.

    6. Connect electrical harnesses (if equipped).


  8. Adjust loader:

    Avoid damage to hoses by making sure that hoses do not interfere while tractor is moving.

    CC277473
    CC277473-UN-14APR16

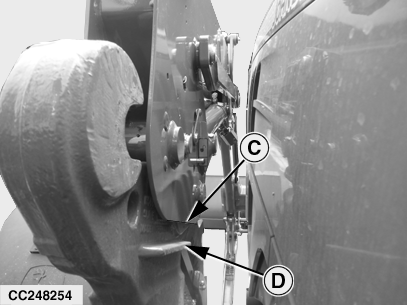

    CC248254
    CC248254-UN-06JUL15

    A - Rear Pin

    B - Upper Hook

    C - Mast Bottom Edge

    D - Mounting Frame Shoulder

    1. Extend or retract lift cylinder to adjust mast bottom edge (C) with mounting frame shoulder (D) on both sides.

    2. Set joystick in float position.

    3. Drive forward making sure that upper hooks (B) are aligned with pins (A) until automatic mast latches mechanisms latch.

      When masts are in contact with mounting frames, turning front wheels in one or the other direction may help latching.


  9. Loader is NOT LATCHED if latch pin indicator (E) or mast indicator label (C) are in any of the RED areas (A) or (B).

    CC250326
    CC250326-UN-18SEP15

    A - Unlatched Position—Red

    B - Unlatched Position—Red

    C - Mast Indicator Label

    D - Latched Position—Yellow

    E - Indicator

    F - Latched Position—Yellow

    Verify latch pin indicators (E) are in latched position (F) on both sides.


  10. Verify mast indicator label (C) and mounting frame indicator (D) are in alignment on both sides.

    • If steps 9 and 10 are NOT as described, repeat procedure from step 8.
    • If steps 9 and 10 are as described, place front wheels in straight position, transmission in PARK, shut off engine and go to step 13.

  11. Place transmission in PARK and shut off engine.

    CC248249
    CC248249-UN-17JUN15

    A - Switch

    Relieve pressure in hydraulic system:

    1. Turn key to ON position. Do not start engine.

    2. Move loader joystick in all directions several times.

    3. If equipped with third function, press switch (A) several times.

    4. Turn key to OFF position.


  12. If equipped with multicoupler, proceed as follows. Otherwise go to next step.

    Make sure shut-off valve (E) is in unlocked position before connecting multicoupler.

    Before connecting multicoupler make sure that fittings are free of dirt and debris.

    CC297251
    CC297251-UN-03NOV16

    CC248250
    CC248250-UN-17JUN15

    CC297250
    CC297250-UN-28OCT16

    A - Cover

    B - Knob

    C - Lever

    D - Loader Multicoupler

    E - Shut-Off Valve

    F - Pin (1 on each side)

    1. Push knob (B) and rotate lever (C) upwards.

    2. Lift cover (A) and insert loader multicoupler (D).

    3. Rotate lever downwards to engage pins (F) and lock multicoupler.

    4. Connect electrical harnesses (if equipped).


  13. If equipped with individual coupler, proceed as follows.

    CC297252
    CC297252-UN-03NOV16

    A - Individual Coupler, Male

    B - Individual Coupler, Female

    C - Plug

    D - Cap

    E - Shut-Off Valve

    Avoid personal injury caused by unexpected loader movement. Hose connections must be correct for loader to respond as expected when control lever is moved.

    Make sure shut-off valve (E) is in unlocked position before connecting coupler.

    Before connecting coupler make sure that fittings are free of dirt and debris.

    Hose connections have color-coded caps and plugs. If caps and plugs are missing, see Identify Hose Connections: Individual Couplers in the Service section.

    1. Push and hold collar on female coupler (B).

    2. Match color-coded cap on hose end with same color-coded plug on the coupler. Insert hydraulic hose with male coupler (A) into female coupler (B).

    3. Release collar on female coupler (B).

    4. Connect color-coded plug (C) and cap (D) together.

    5. Repeat procedure for all couplers.

    6. Connect electrical harnesses (if equipped).

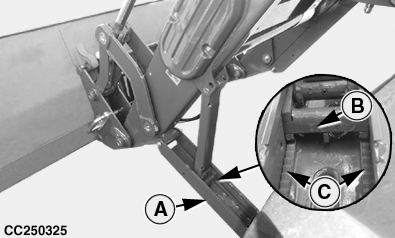

  14. CC250325
    CC250325-UN-21SEP15

    Right-Hand Side Shown

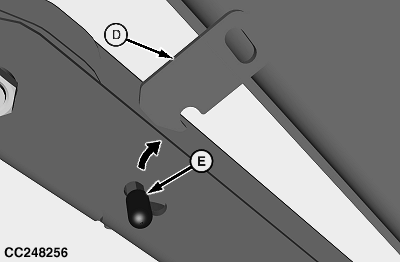

    CC248256
    CC248256-UN-23JUN15

    A - Parking Stand (2 used)

    B - Adjusting Device

    C - Tooth Rack

    D - Latch Plate

    E - Latch

    Avoid personal injury. Keep hands and fingers away from sides of parking stand (A) when placing in storage position.

    Store loader parking stands:

    1. Lift support arm up to the end of the tooth rack area so that parking stand lifts smoothly.

      Pull out adjusting device (B) from tooth racks (C) and lift parking stand (A) towards boom.

    2. Push parking stand towards boom until latch (E) engages in latch plate (D), locking parking stand in place.

    3. Repeat steps on opposite side.


  15. To avoid serious bodily injury or death, DO NOT operate loader without making sure that loader is attached properly. Failure to verify could cause loader to detach from tractor.

    Check loader operation. See Controls section.

JD44289,00001A6-19-20161103
