Detach Loader

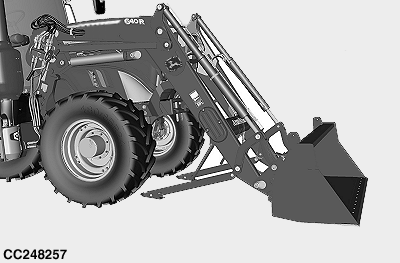

  1. TS1712
    TS1712-UN-10JUL12

    CC248257
    CC248257-UN-23JUN15

    To help prevent personal injury caused by a falling loader, always detach on a hard, level surface. Loader MUST be equipped with a bucket.

    DO NOT allow bystanders nearby while detaching the loader.

    Allow only the tractor operator to detach loader.

    For tractors equipped with Triple-Link Suspension (TLS™) front axle, system must be placed in “Auto Mode” position. See your tractor’s Operator Manual.

    Level bucket and lower to ground. Fully retract lift cylinders.


  2. Place front wheels in straight position, transmission in PARK and shut off engine.

  3. Relieve pressure in hydraulic system:

    CC1036552
    CC1036552-UN-27JAN12

    A - Rocker Switch

    B - 3rd Function

    C - 4th Function

    1. Turn key to ON position. Do not start engine.

    2. Move loader joystick in float position.

    3. If equipped with 3rd function:

      • 2 functions and diverter:

        Continuously press button (B), move joystick to right and left.

      • 3 functions:

        Press and release button (B), press rocker switch (A) several times.


    4. Turn key to OFF position.


  4. Lower parking stands:

    CC248259
    CC248259-UN-23JUN15

    CC250327
    CC250327-UN-21SEP15

    CC250328
    CC250328-UN-21SEP15

    A - Latch Plate

    B - Latch

    C - Parking Stand

    D - Adjusting Device

    E - Tooth Rack

    F - Upper Stop

    G - Flanged Nut

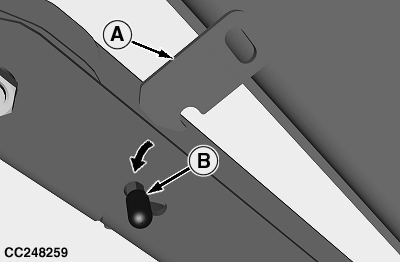

    1. Support parking stand (C) and push latch (B) down to release parking stand.

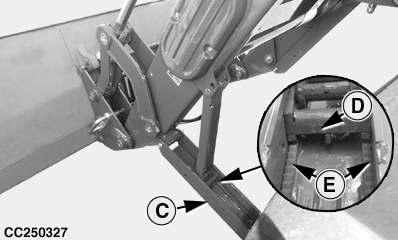

    2. Lower parking stand to the ground. Verify adjusting device (D) locks into tooth racks (E) by trying to lift parking stands.

      Avoid injury from shifting loader while detaching or while parked. Solid debris build up may prevent adjusting device from locking in position in tooth racks. Inspect the tooth racks and the adjusting device to make sure, they are free of debris accumulation, snow or ice. Remove any excessive build up.

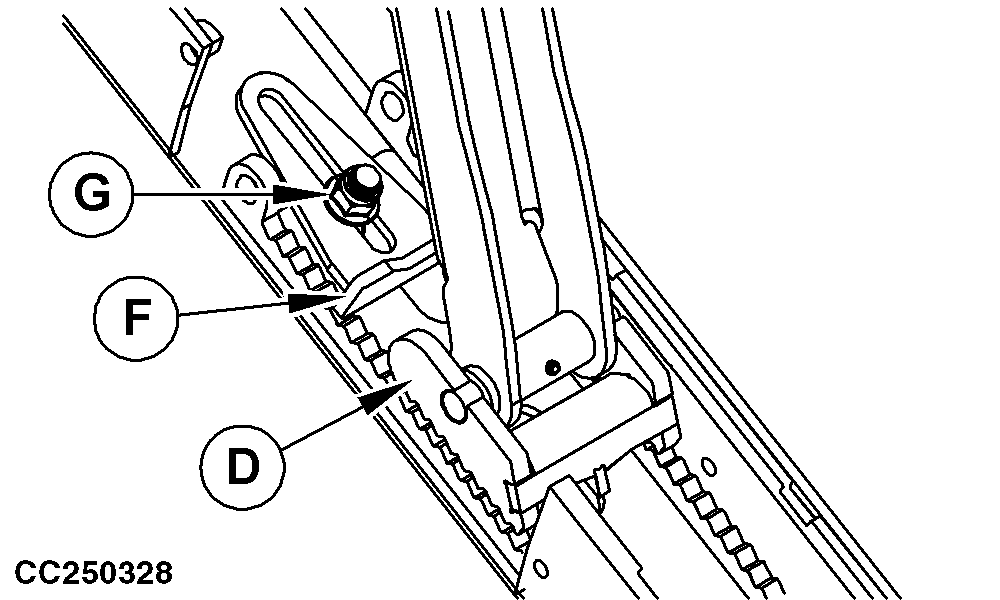

      When detaching the loader for the first time, it is necessary to adjust the upper stop (F):

      Loosen flanged nut (G).

      Adjust so that there are two teeth between upper stop (F) and adjusting device (D).

      Tighten flanged nut (G).

    3. Each change of the bucket model requires readjustment of the upper stop.

    4. Repeat steps on opposite side.


  5. If equipped with multicoupler, proceed as follows. Otherwise go to next step.

    CC297253
    CC297253-UN-03NOV16

    CC248261
    CC248261-UN-23JUN15

    CC248262
    CC248262-UN-23JUN15

    A - Knob

    B - Handle

    C - Multicoupler

    D - Shut-Off Valve

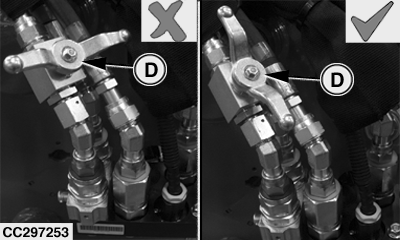

    Make sure shut-off valve (D) is in unlocked position before connecting multicoupler.

    Before connecting multicoupler make sure that fittings are free of dirt and debris.

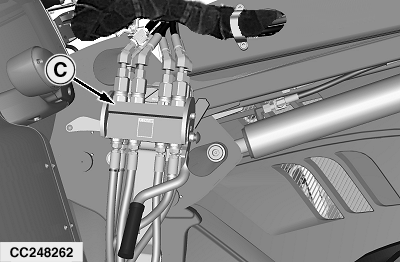

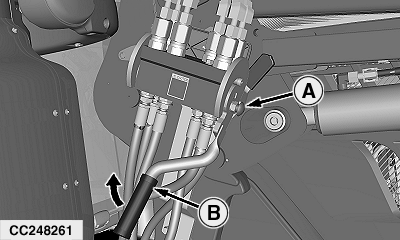

    1. Push red knob (A) and rotate handle (B) upwards to disconnect multicoupler (C).

    2. Disconnect electrical harnesses (if equipped).


    3. CC248266
      CC248266-UN-06JUL15

      C - Multicoupler

      E - Storage Bracket

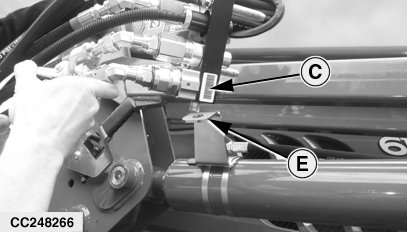

      Store multicoupler (C) on storage bracket (E).


    4. CC248263
      CC248263-UN-23JUN15

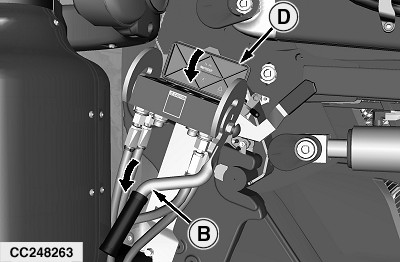

      Close protective cover (D) and rotate handle (B) down until the lock engages.


  6. If equipped with individual couplers, proceed as follows.

    CC297252
    CC297252-UN-03NOV16

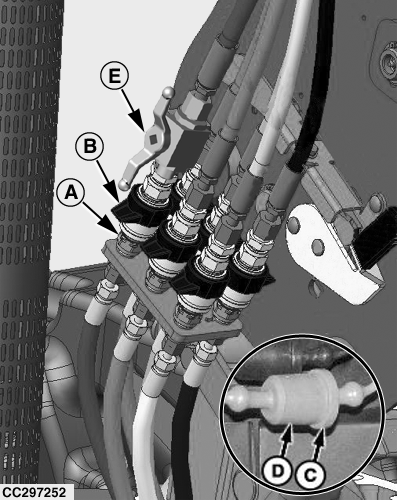

    A - Individual Coupler, Male

    B - Individual Coupler, Female

    C - Plug

    D - Cap

    E - Shut-Off Valve

    Make sure shut-off valve (E) is in unlocked position before connecting coupler.

    Before connecting coupler make sure that fittings are free of dirt and debris.

    1. Disconnect electrical harnesses (if equipped).

    2. Push and hold collar on female individual coupler (B).

    3. Disconnect male individual coupler (A).

    4. Release collar on female individual coupler (B).

    5. Place cap (D) on hose end and plug (C) in coupler.

    6. Repeat steps for all remaining hydraulic hose connections.

    7. Place hoses on lift cylinder. Do not lay hoses on ground.


  7. Unlatch loader:

    W26675
    W26675-UN-01APR15

    A - Lever

    B - Handle

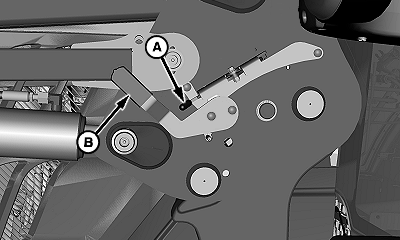

    1. Push safety lock lever (A) and fully rotate handle (B) downward to release latch.

    2. Rotate handle (B) upward to lock it in home position.

    Repeat on opposite side.


  8. Avoid damaging hoses. Make sure that hoses do not interfere with tractor when backing away from loader.

    Place transmission in REVERSE, and move tractor away from loader.
