Shut-Off Valve

CC006755-UN-28MAR95

CC230290-UN-23JUN15

Multicoupler Shown

A - Shut-Off Valve

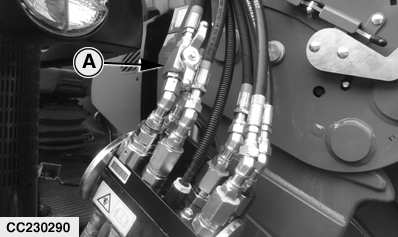

The shut-off valve is on the right side of the loader near the hydraulic coupler.

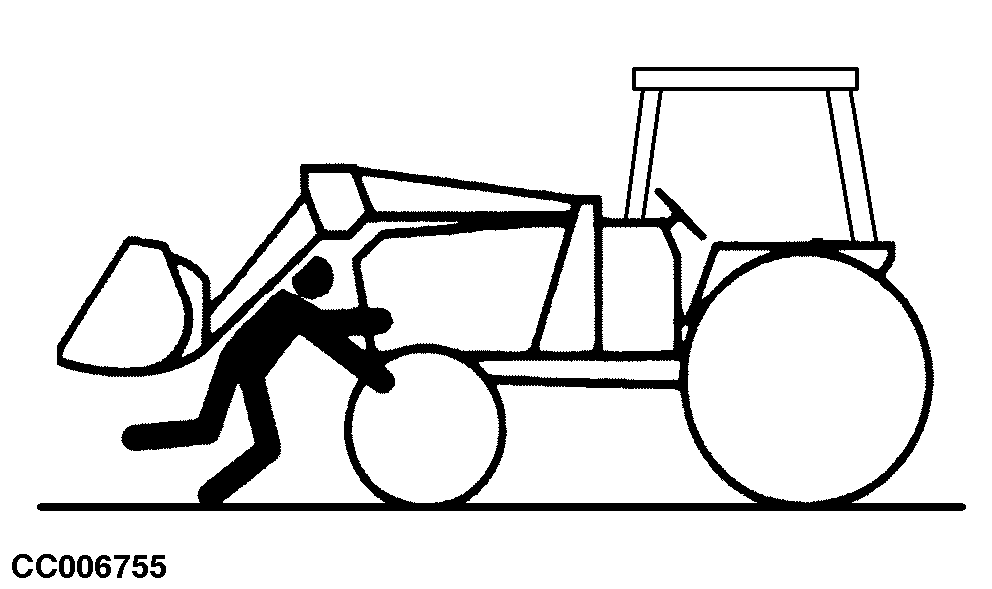

DO NOT use shut-off valve (A) for servicing hydraulic components.

The shut-off valve (A) must be in unlocked position when connecting or disconnecting hydraulic coupler.

1. Raise loader to required height.

2. Place transmission in PARK, apply park brake, shut off engine and remove key.

3. Turn shut-off valve (A) clockwise to lock the position of the loader.

   Turn shut-off valve (A) counterclockwise to unlock the position of the loader.
