Attach Implements with Combi Euro/MX Carrier

To prevent serious injury, DO NOT allow bystanders near loader while attaching implement. ONLY tractor operator is allowed to attach implement.

  1. Clean debris from latching mechanism, carrier, and attaching points.

    3rd function multicoupler lever must be in locked (DOWN) position and cover must be closed when implement multicoupler is disconnected.

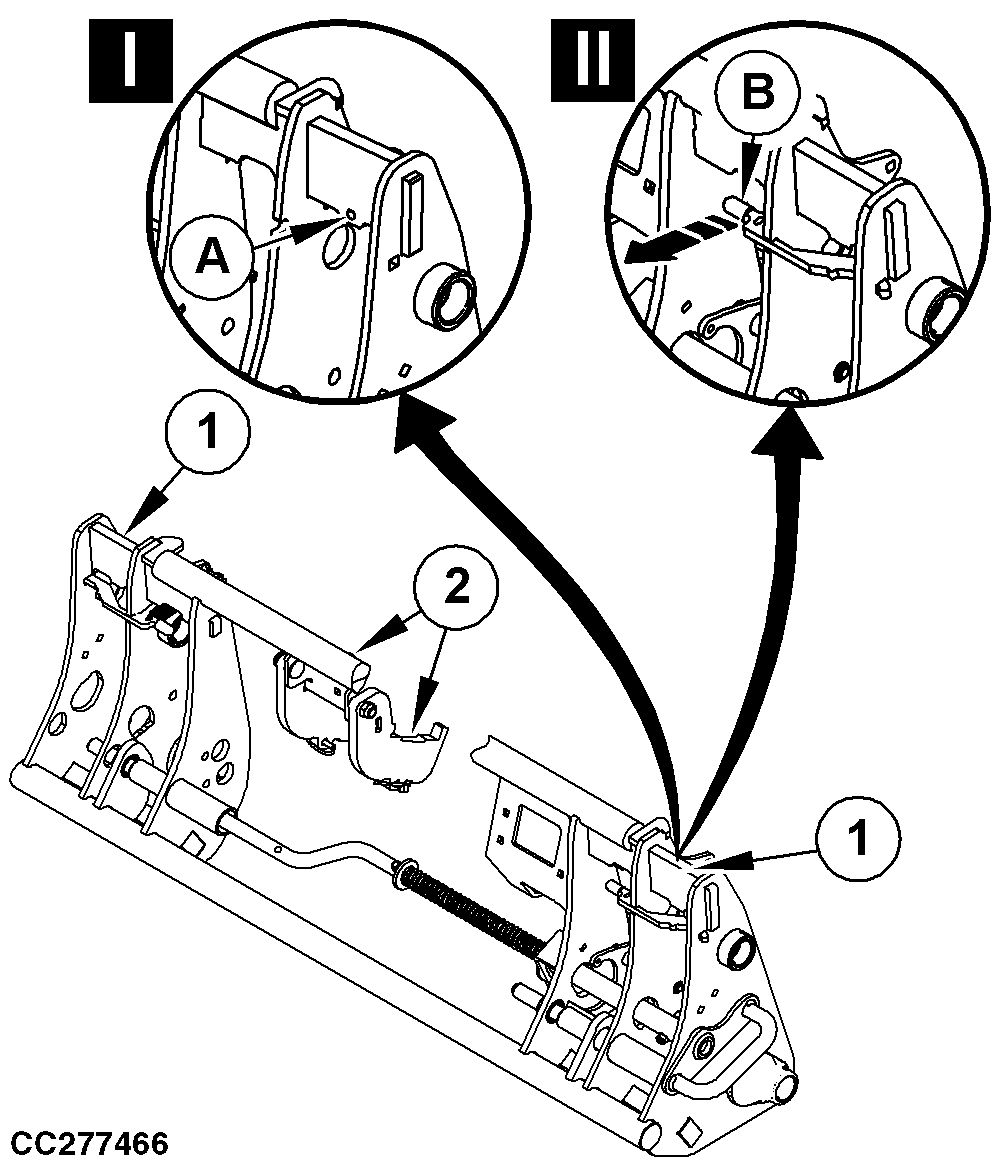

    CC277466
    CC277466-UN-08APR16

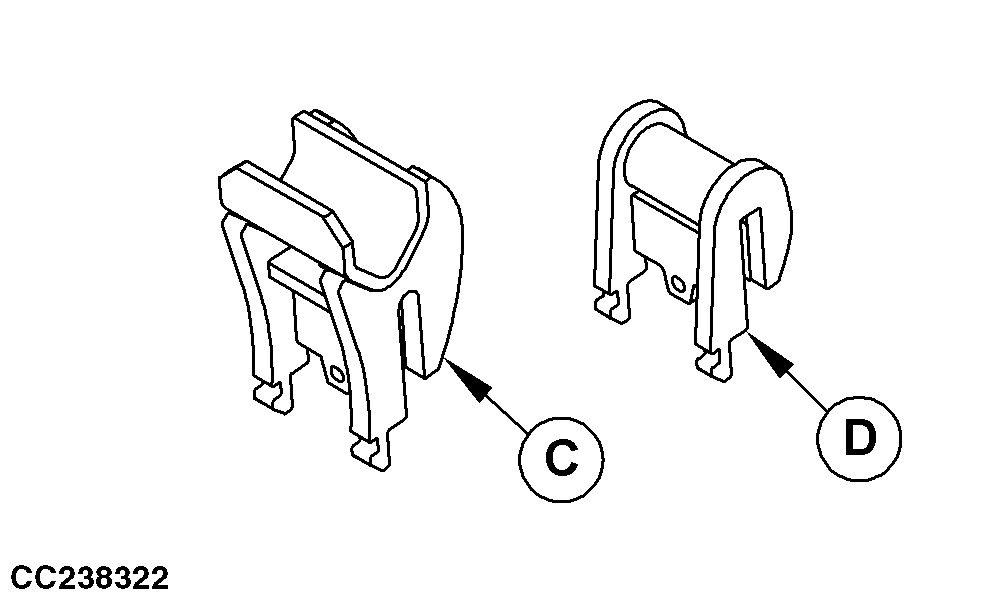

    CC238322
    CC238322-UN-20APR15

    Adapters for Implement

    A - Lock Hole

    B - Lever

    C - Adapter for MX Implement

    D - Adapter for Euro Implement

    1 - Working Position

    2 - Storage Position


  2. Install adapters (C) or (D) according to the implement type:

    Carrier configuration I:

    • For Euro implement, install Euro adapters (D) in working position (1), lock it with lynch pin in hole (A). Install MX adapters (C) in storage position (2), lock it with lynch pin.
    • For MX implement, install MX adapters (C) in working position (1), lock it with lynch pin in hole (A). Install Euro adapters (D) in storage position (2), lock it with lynch pin.

    Carrier configuration II:

    • For Euro implement, pull lever (B) and install Euro adapters (D) in working position (1). Install MX adapters (C) in storage position (2), lock it with lynch pin.
    • For MX implement, pull lever (B) and install MX adapters (C) in working position (1). Install Euro adapters (D) in storage position (2), lock it with lynch pin.

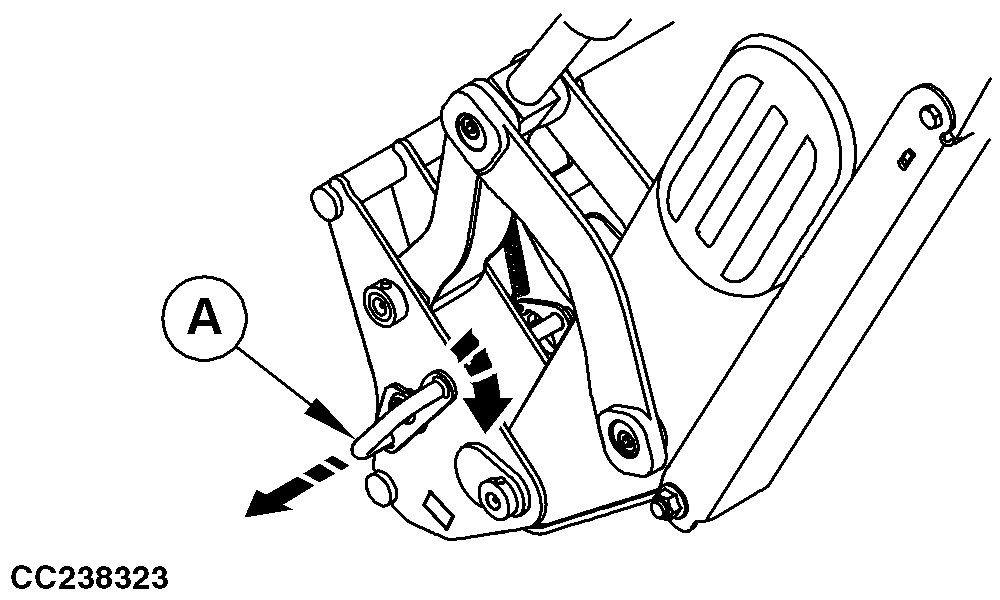

  3. CC238323
    CC238323-UN-26MAY15

    Loaders without Hydraulic Implement Unlatching

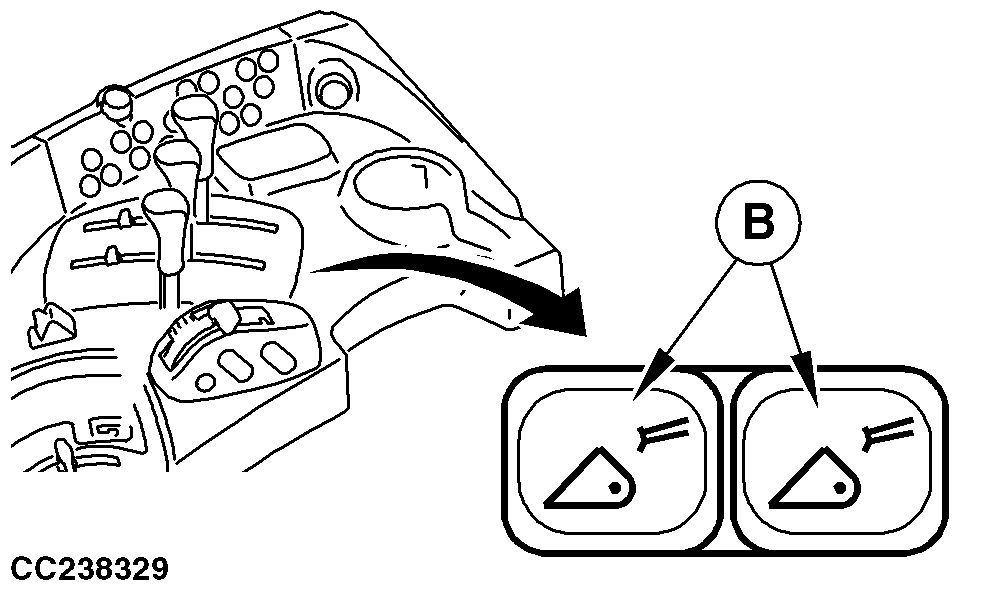

    CC238329
    CC238329-UN-26MAY15

    Loaders with Hydraulic Implement Unlatching

    A - Handle

    B - Unlatching Button

    Place implement latch in unlatched position:

    1. Loaders without hydraulic implement unlatching:

      • Place transmission in PARK, shut off engine and remove key.
      • Pull latch handle (A) outwards and rotate clockwise until it is locked in unlatched position.

    2. Loaders with hydraulic implement unlatching:

      • Fully roll back carrier to raise pressure in the accumulator of hydraulic implement unlatching.
      • Simultaneously press both buttons (B) to move implement latch to unlatched position.

      On some tractor models, unlatching button is positioned on the radio console.

      If hydraulic implement unlatching is out of order, the system can be used manually.


  4. Attach Implement:

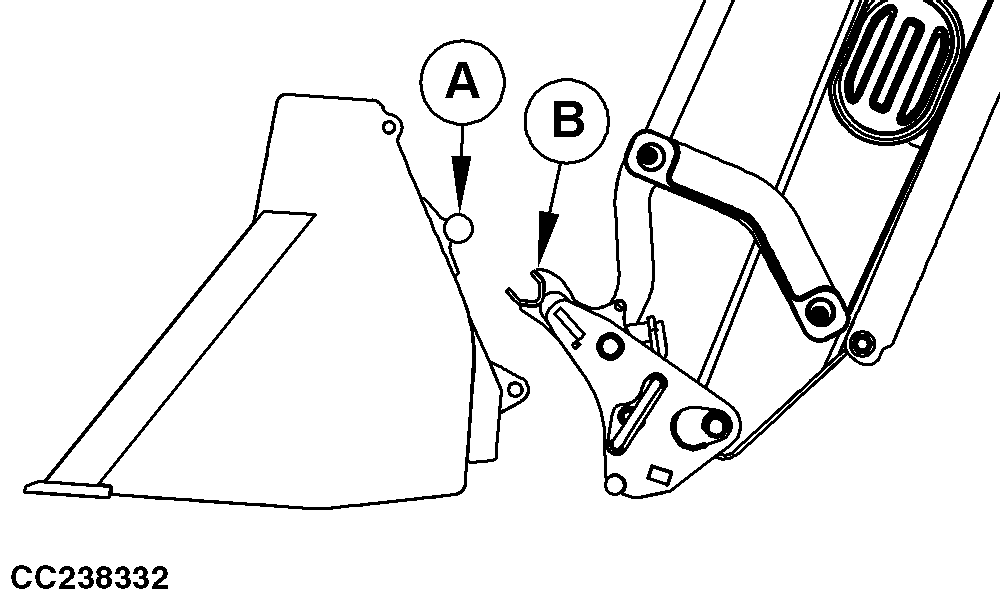

    CC238332
    CC238332-UN-12MAY15

    A - Implement Hooking Bar

    B - MX Carrier Hooks

    1. Loaders with combi Euro/MX carrier and prepared for MX implement:

      • When MX carrier hooks (B) are aligned with implement hooking bar (A), lower carrier to place MX carrier hooks (B) under implement hooking bar (A) as shown.
      • Drive forward and raise carrier until MX carrier hooks (B) engage in implement hooking bar (A) on both sides.


    2. Loaders with combi Euro/MX carrier and prepared for Euro implement:

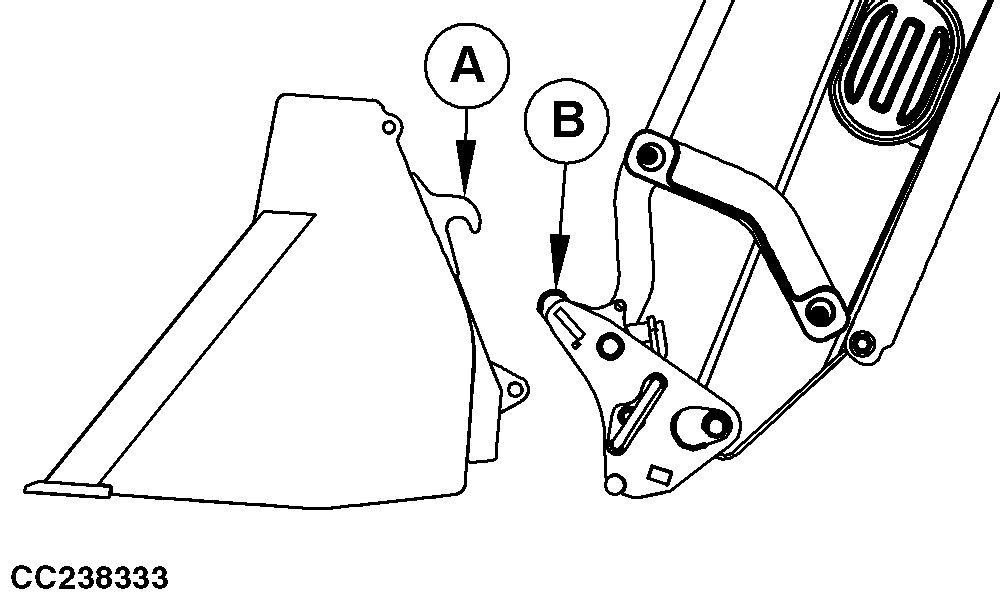

      CC238333
      CC238333-UN-12MAY15

      A - Implement Hooks

      B - Euro Carrier Hooking Bar

      • When Euro carrier hooking bar (B) is aligned with implement hooks (A), lower carrier to place Euro carrier hooking bar (B) under implement hooks (A) as shown.
      • Drive forward and raise carrier until Euro carrier hooking bar (B) engages in implement hooks (A) on both sides.


  5. Latch Implement:

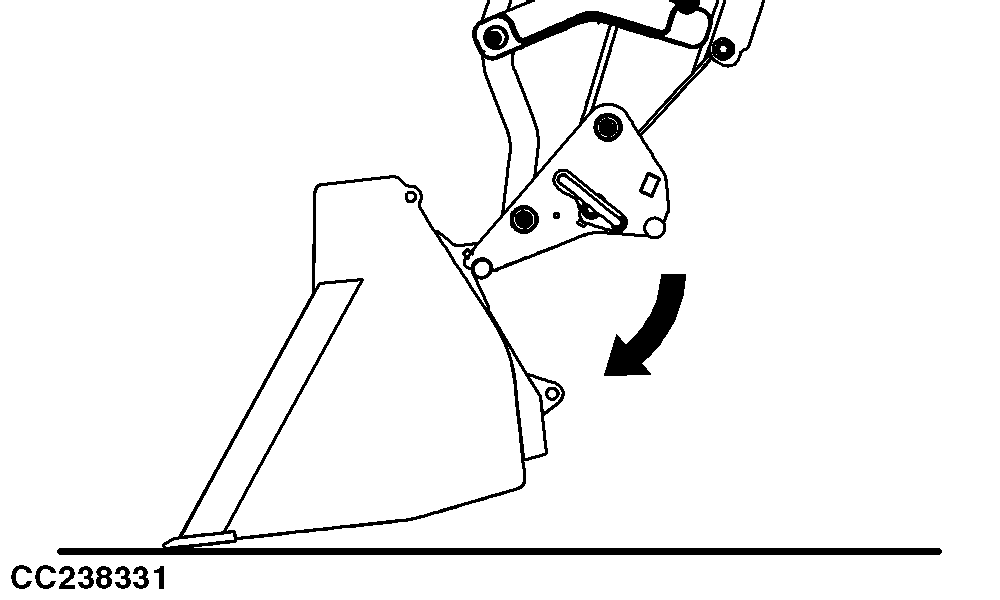

    CC238331
    CC238331-UN-02JUN15

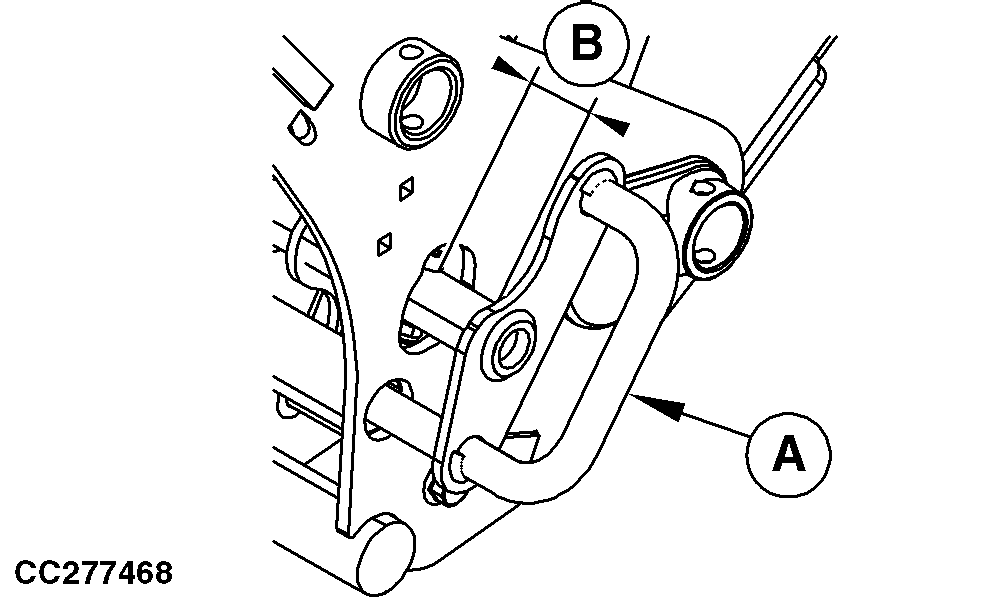

    CC277468
    CC277468-UN-08APR16

    A - Latch Handle

    B - Distance

    Avoid injury from unexpected implement movement while attaching. If loader is raised prior to implement latching, the implement may jump off the carrier bar and contact a bystander. To avoid unexpected detachment, roll carrier back slowly until implement latch engages before lifting loader.

    Slowly roll back carrier until implement latch engages.

    On loaders equipped with combi Euro/MX carrier and prepared for Euro implement, latch handle (A) plate is not flush against carrier when implement is latched. The distance (B) must be within 45 mm (1-3/4 in) and 55 mm (2-3/16 in).


  6. Check that implement is properly latched on loader.

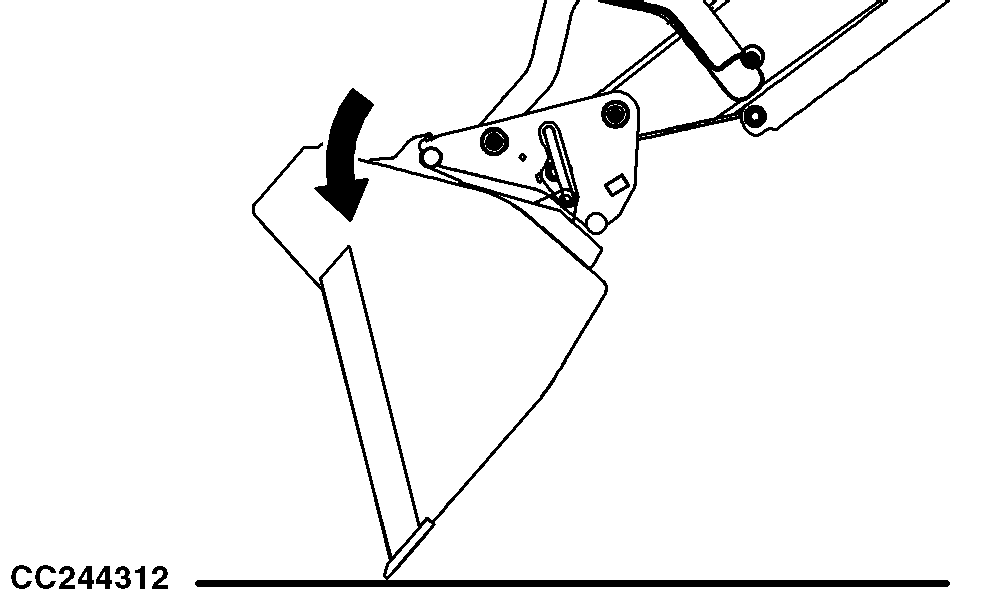

    CC244312
    CC244312-UN-02JUN15

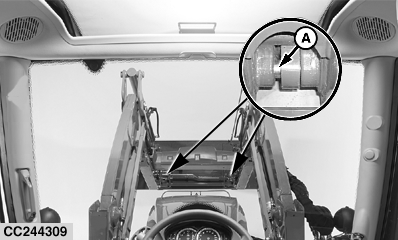

    CC244309
    CC244309-UN-02JUN15

    A - Latch Pin (1 on each side)

    To avoid serious bodily injury or death, DO NOT operate loader before making sure latch pins (A) are properly engaged with implement. Failure to engage pins could cause implement to detach from loader.

    Check pin engagement with implement:

    1. Position loader approximately 300 mm (1 ft.) above ground and dump implement until front edge contacts ground.

    2. Apply pressure against ground (extend bucket cylinders) to verify that pins (A) are fully engaged in implement.


  7. Lower loader to ground, place transmission in PARK, shut off engine, and remove key.

  8. Relieve pressure in hydraulic system. See your tractor Operator’s Manual for specific procedure.

  9. Lock out joystick. See Lock and Unlock Joystick in Controls section. If equipped with other loader control levers, see your tractor Operator’s Manual.

  10. Connect implement hydraulics and electrics (implement with 3rd or 4th function).

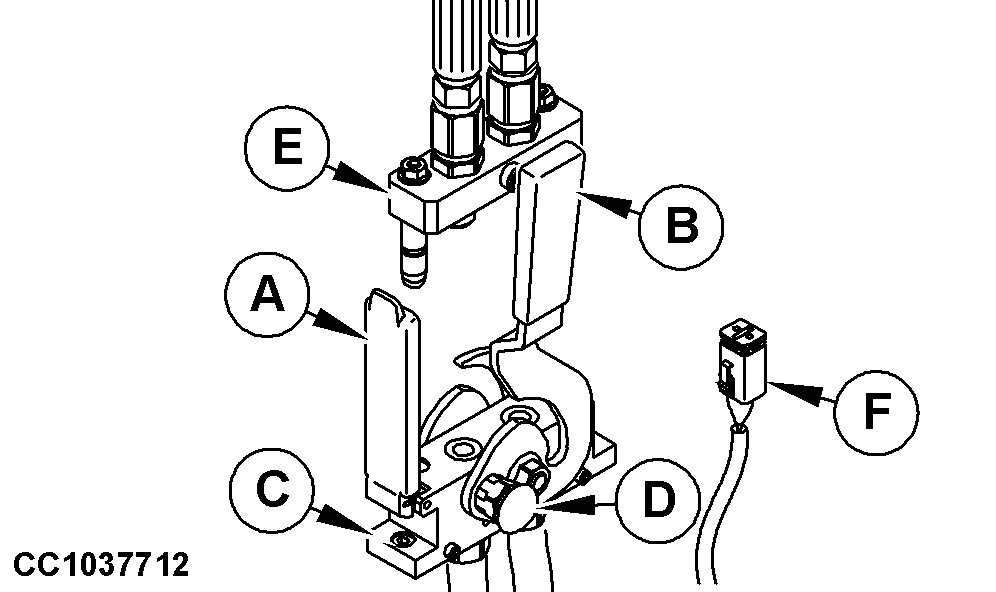

    CC1037712
    CC1037712-UN-17JUL12

    Implement Multicoupler

    A - Cover

    B - Lever

    C - Base

    D - Lock Button

    E - Top Case

    F - Harness

    Before each connection, carefully clean the mating surface of base and top case, as well as guiding pins.

    Open multicoupler cover (A), push lock button (D) and simultaneously pull up lever (B).

    Multicoupler must align properly or damage to couplers may occur.

    Engage top case (E) on base (C). Pull down lever (B) until lock button (D) engages, so that top case (E) is connected to base (C).

    Connect electrical harness (F) for additional functions if equipped.


  11. Unlock joystick.

  12. Check implement operation.

NB02380,000012B-19-20160415
