643R HSL Loader Specifications on 6155R Tractor

CC1036916-UN-03FEB12

Tractor Model 6155R
Minimum Rear Ballast	3-Point Hitch 1800 kg (3968 lb.)
Front Tires	480/70R28
Rear Tires	580/70R38
Maximum Loader Weight Including Mounting Frame
Mass	1119kg (2467 lb.)
Heavy-Duty Material Bucket
Width	2150 mm (7 ft. 5/8 in.)
Length	—
Mass	310 kg (683 lb.)
Hydraulic System
Rated Flow	114 L/min. (30 gpm)
Maximum Pressure	20100 kPa (200 bar) (2900 psi)
Cycle Times (in seconds)
Loader Raise Time	3.62
Loader Lower Time	2.71
Bucket Dump Time	2.65
Bucket Roll-Back Time	1.98
Lift Height (Maximum)

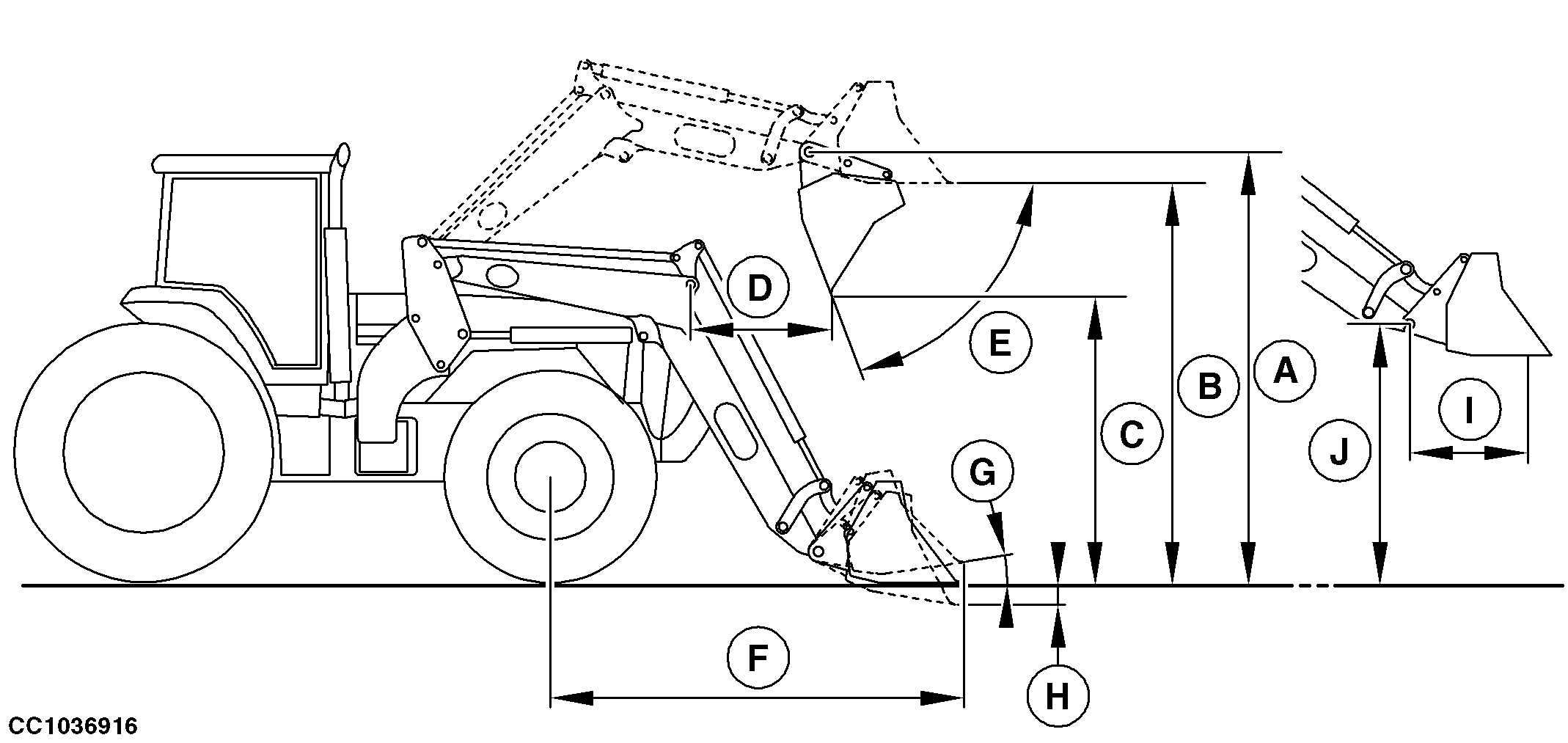

To Pivot Pin (A)	4302 mm (169 in.)

Specifications and design subject to change without notice

Clearance
Bucket Level (B)	4032 mm (159 in.)
Bucket Dumped (C)	3276 mm (129 in.)
Digging Depth (H)	145 mm (6 in.)
Reach
At Maximum Lift Height with Bucket Dumped (D)	690 mm (27 in.)
Bucket on Ground with Bucket Leveled (F)	2738 mm (108 in.)
Angles (Maximum)
Dump (E)	57°
Dump at Ground	145°
Roll back (G)	53°
Lift Capacity
To Maximum Height (A) at Pivot Point	2346 kg (5172 lb.)
To Maximum Height (A) at 800 mm (2 ft. 7 in.) (I) Ahead of Pivot Point	2120 kg (4674 lb.)
To 1500 mm (4 ft. 11 in.) (J) at Pivot Point	2681 kg (5911 lb.)
Breakout Force
At Pivot Point	2968 kgf (6543 lbf)
800 mm (2 ft. 7 in.) (I) Ahead of Pivot Point	2671 kgf (5889 lbf)
