Each Tractor Engine Oil Change - Check Mounting Frame Hardware (5M and 5R Series PIN Prefix 1L0 Tractors)

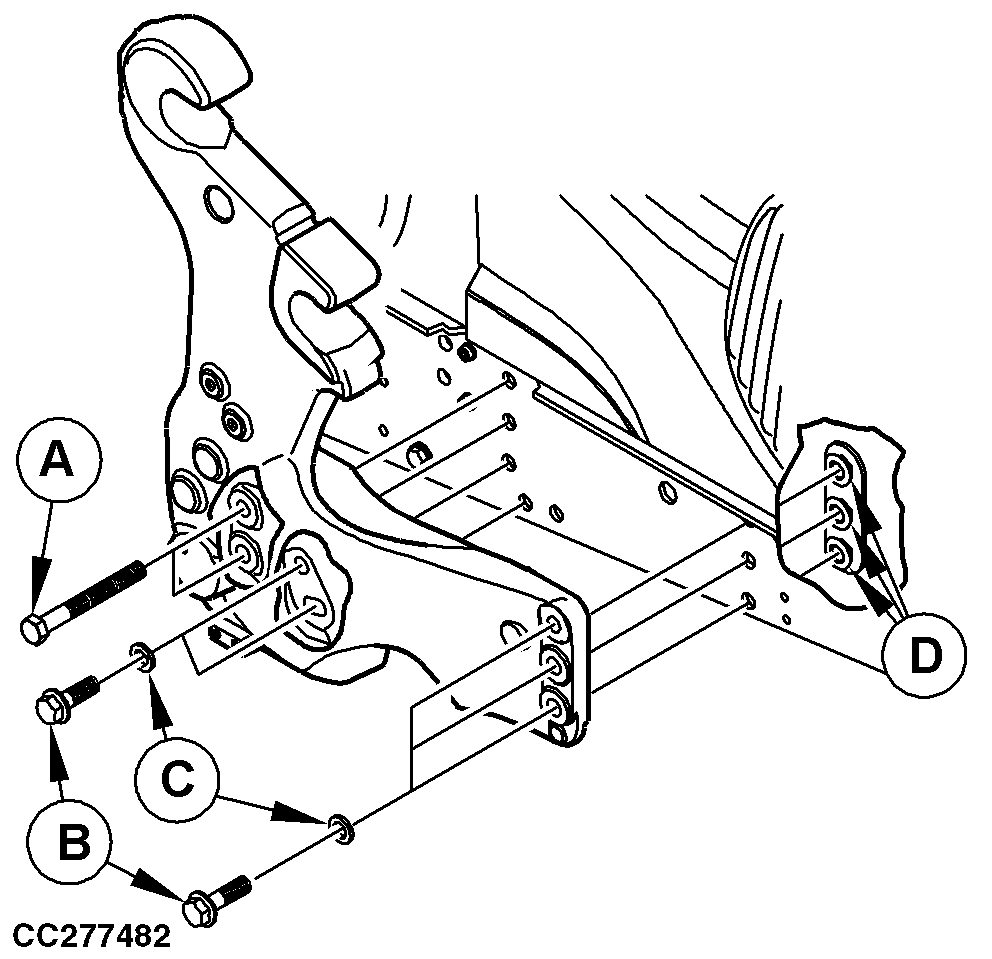

CC277482-UN-23MAY16

Right Side

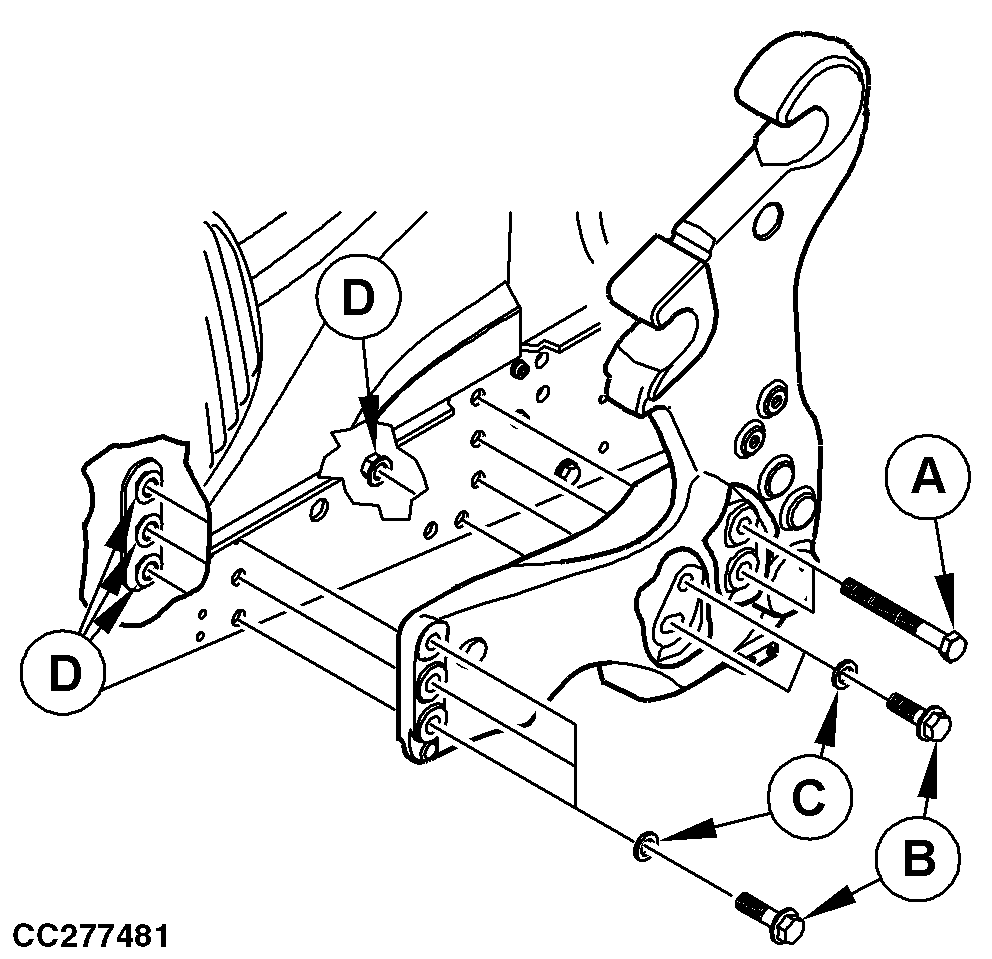

CC277481-UN-23MAY16

Left Side

CC244318-UN-04JUN15

A - Cap Screw with Flange

B - Cap Screw with Flange

C - Washer

D - Hex. Nut with Flange

Help prevent damage to the tractor or loader caused by operating with loose mounting hardware. Retighten hardware after each engine drain.

Tighten seven cap screws (A) on both sides to specification using tightening sequence shown.

Cap Screws with Flange (A)	Torque	620 N.m (460 lb.-ft.)

Hardware used on loader mounting frame
Item	Designation	Standard	Dimension	Identification / Grade	Coating
(A)	Cap screw with flange	JDS121	M20 x 2.5 x 160	10.9	Zinc
(B)	Cap screw with flange	JDS121	M20 x 2.5 x 70	10.9	Zinc
(D)	Nut with flange	ISO4161	M20 x 2.5	10	-

Hardware used on loader mounting frame
Item	Designation	Standard	Dimension - Inside	Dimension - Outside	Thickness	Material	Coating
(C)	Washer	JDS130	21.4 mm (0.9 in.)	42 mm (1.5 in.)	5 mm (0.1 in.)	300HV	Zinc
